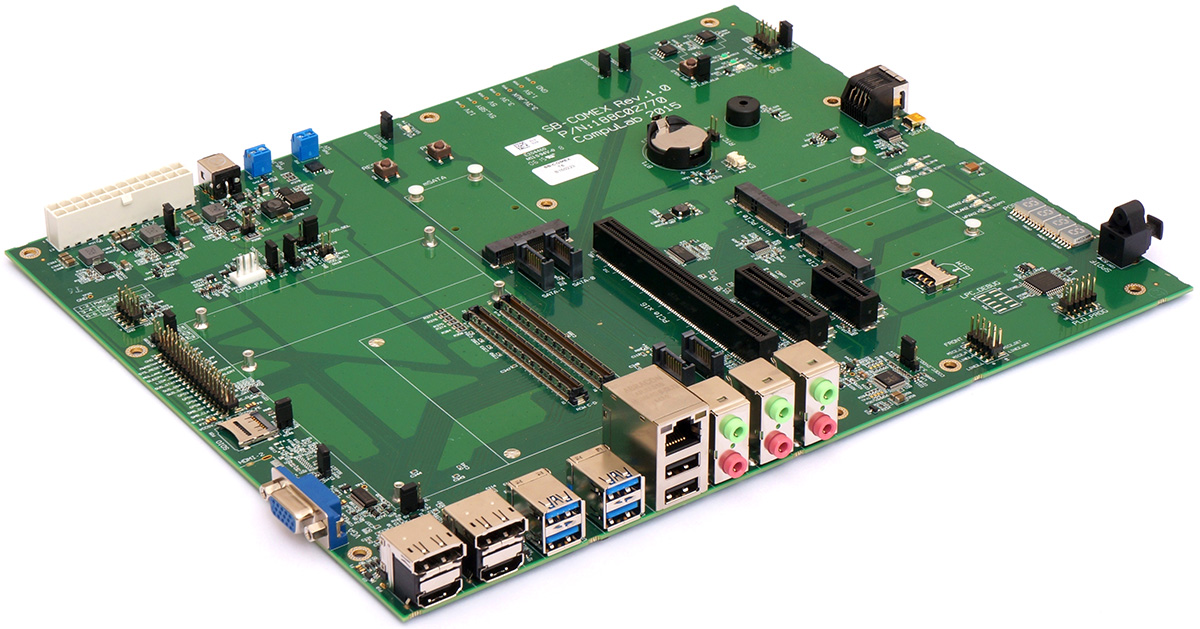

SB-COMEX-T6 Carrier Board

COM Express Evaluation Carrier Type 6

  • COM Express Rev. 2.0, Pin-out Type 6
  • ATX Form Factor (305mm x 244mm)
  • HDMI, DisplayPort, LVDS, eDP
  • USB3, PCIe, mPCIe, SATA, GbE

COM Express evaluation board

SB-COMEX-T6 is a COM Express carrier board designed as an evaluation platform for COM Express Computer-on-Modules and a reference for custom carrier board development. SB-COMEX-T6 is fully compliant with the COM Express standard.

Versatile development platform

SB-COMEX-T6 has been designed to allow users full and easy access to all functions present on COM Express Type-6 Computer-on-Modules. Combining extensive and highly configurable set of interfaces and connectors with rich debug functionality, SB-COMEX-T6 allows all around evaluation and SW development with COM Express Computer-on-Modules.

Comprehensive design reference and documentation

CompuLab provides SB-COMEX-T6 with comprehensive documentation and hardware design packages including technical manuals, application notes, design schematics and layout design.

  • "Option" column specifies the configuration code required to have the particular feature.
  • "+" means that the feature is always available

General

Supported ModulesCOM Express basic and compact with pin-out Type 6
+
ComplianceCOM Express Rev. 2.0
Pin-out Type 6
+

Display

HDMI / DisplayPortUp-to 3x HDMI or DisplayPort (DDI1, DDI2, DDI3)
+
LVDS1x dual-channel LVDS, 40-pos FPC connector
+
eDP1x eDP, standard DisplayPort connector
* mutually exclusive with LVDS
+
VGA1x VGA, standard VGA connector
+

Storage

Hard Disk4x SATA ports, SATA connector
+
mSATA1x mSATA
* precludes one of the SATA ports
+
SD1x uSD connector
+

Network

Ethernet1x 10/100/1000 MBit Ethernet port, RJ45 connector
+

Audio

Analog AudioOn-board Realtek ALC886 codec
7.1 Audio jacks
+
Digital AudioS/PDIF in/out, Toslink connector
+
HDMI audio output
+

I/O

PCI Express1x PCIe x16
+
1x PCIe x4
+
1x PCIe x1
+
2x mini-PCie sockets
+
USB4x USB3.0
+
2x USB2.0
+
Serial1 x RS232 (RX/TX only), ultra-mini serial connector
+
CAN bus1x CAN, RJ45 connector
+
GPIO8x GPIO, 100-mil header
+

System

General FeaturesPWM fan control
Feature Connector
SIM socket
PWR/RST Buttons
+
Debug FeaturesSPI boot
Port80 POST Code Display
Diagnostic LED
+
Power SupplyATX power supply 24 pin
12V DC Jack
+

Electrical Specifications

Supply Voltage
8.5V – 12V

Mechanical Specifications

Form-factorATX
Dimensions305 x 244 mm
Weight460 gram

Environmental and Reliability

MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C. Click for availability note
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz

Hardware Documentation

Hardware Design Resources

Product status: Introduction

The CompuLab part number specifies all options available for a particular product.
P/N template: SB-COMEX-T6-[Tx]

Minimal Configuration

Minimal configuration P/N: SB-COMEX-T6
1K-units price
$259

Optional Features

FeatureOptionsP/N codeAdd ($)
Temperature rangeCommercial
Extended
Industrial
-
TE
TI
-
20
100
  • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

Small Quantity Orders

Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

QTYFactor
1K1.0
5001.1
1001.2
101.3
11.4
