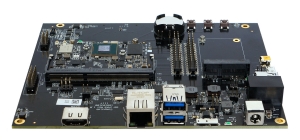

SBC-iMX8 - NXP i.MX8M Single Board Computer

  • High performance graphics and image processing
  • Wide range of high-speed interfaces
  • Optimized for industrial embedded applications

i.MX8 processor

NXP i.MX8M processor family

  • Quad-core ARM Cortex-A53 CPU, 1.5GHz
  • Integrated 2D/3D GPU and 4K VPU
  • Real-time ARM Cortex-M4 co-processor
  • SBC Highlights

    Feature Highlights

  • Up to 4GB LPDDR4 and 64GB eMMC
  • HDMI 2.0a, LVDS, LCD, up to 4096 x 2160
  • Gbit Ethernet, WiFi 802.11ac, BT 4.1
  • mini-PCIe, 4x USB3.0, RS232, RS485, 34x GPIO
  • View full spec

    SW support

    Yocto Linux and Android

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system, Android and U-Boot
  • Mainline Linux kernel support
  • Why choose CompuLab?

    10-year Longevity

    Direct Engineer Support

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    • The "SB option" column specifies the SB-iMX8 carrier board P/N code required for a particular feature. The "SOM option" column specifies the CL-SOM-iMX8 P/N code required for a particular feature. SBC-iMX8 feature-set is a combination of features provided by the attached CL-SOM-iMX8 and the features implemented on SB-iMX8. For a particular feature to be present, both the SOM and SB options of that feature must be implemented.
    • "+" means that the feature is always available, regardless of P/N code.
    FeatureSpecificationSB OptionSOM Option

    System Core

    CPU
    Graphics
    RAM
    Storage
    Please refer to CL-SOM-iMX8 specifications

    Display and Camera

    HDMIHDMI 2.0a, up-to 4096 x 2160 @60Hz, HDMI connector
    +
    +
    LVDSLVDS interface, up to 1920x1080, 100-mil header
    +
    L
    LCD panelParallel RGB interface, up to 1920x1200, FPC connector
    Resistive touch-screen interface, FPC connector
    Fully supports Startec KD050C 5" 480x800 TFT LCD panel
    +
    LP
    CameraMIPI CSI, 2x12 B2B connector compatible with LI-OV5640-MIPI-AF camera module
    +
    +

    Network

    Ethernet1000/100/10Mbps Ethernet port, RJ45 connector
    +
    E
    WiFi802.11a/b/g/n/ac WiFi interface
    Broadcom BCM4356 chipset
    +
    WB
    BluetoothBluetooth 4.1 BLE
    Broadcom BCM4356 chipset
    +
    WB
    CellularSupport for cellular modem (via mini-PCie socket)
    On-board micro-SIM card socket
    +
    +

    Audio

    Analog AudioAnalog stereo output, line-in, 3.5mm jacks
    Implemented with the CL-SOM-iMX8 audio codec
    +
    A
    Digital AudioS/PDIF input/output, 3.5mm jacks
    +
    +

    I/O

    PCI Expressmini-PCIe socket, full-size
    +
    +
    USB1x USB3.0 dual-role, micro-USB connector
    +
    +
    3x USB3.0 host, type-A connectors
    +
    +
    MMC / SDIOMMC / SD / SDIO interface. Standard full-size SD socket.
    +
    +
    Serial1x serial debug port via UART-to-USB bridge, micro-USB connector
    +
    +
    1x serial debug port via RS232 transceiver, ultra-mini serial connector
    * mutually exclusive with serial debug port via USB
    +
    +
    RS485 port, RJ11 connector
    +
    +
    Up-to 2x UART, 3.3V levels, 100-mil header
    +
    +
    SPIUp-to 1x SPI interface, 100-mil header
    +
    +
    I2CUp-to 2x I2C interface, 100-mil header
    +
    +
    GPIOUp-to 34x GPIO, 100-mil header
    +
    +

    System and Debug

    RTCReal time clock operated from on-board coin-cell battery
    +
    +
    JTAGJTAG debug interface, 100-mil header
    +
    +

    Electrical Specifications

    Supply Voltage
    Unregulated 8V to 18V
    Digital I/O voltage3.3V

    Mechanical Specifications

    Dimensions160 x 136 x 22 mm
    Weight165 gram

    Environmental and Reliability

    MTTF> 200,000 hours
    Operation temperature (case)Commercial: 0° to 70° C
    Extended: -20° to 70° C
    Industrial: -40° to 85° C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz
    SBC-iMX8 block diagram

    CL-SOM-iMX8 and SBC-iMX8 Evaluation Kit

    Package contents

    Technical Support

    • Technical support for 12 months.
    • Schematics review of the customer's carrier board design.
    • LCD panel compatibility verification and driver adaptation service.
    • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

    Hardware

    Kit Price: $375

    • SOM-iMX8-C1500Q-D2-N16-E-LL-A-WB-H
    • SB-iMX8 carrier board
    • WiFi antenna and cable
    • Serial port cable
    • USB cable and adapter
    • 12V power supply

    Documents and Guides

    Product status: Active

    The CompuLab part number specifies all options available for a particular product.
    Note: The SB-iMX8 carrier-board must contain a CL-SOM-iMX8 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-iMX8 only.
    P/N template: SB-iMX8-[Tx]

    Minimal Configuration

    Minimal configuration P/N: SB-iMX8
    1K-units price
    $68

    Optional Features

    FeatureOptionsP/N codeAdd ($)
    Temperature rangeCommercial
    Extended
    Industrial
    -
    TE
    TI
    -
    10
    50
    Cables, connectors and accessoriesclick here
    • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

    Small Quantity Orders

    Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

    QTYFactor
    1K1.0
    5001.2
    1001.5
    102.0
    13.0
