24-June-2025 – Compulab introduces the MCM-iMX95 solderable System-on-Module, built around the high-performance NXP i.MX 95 System-on-Chip family.

i.MX95 features up-to 6 ARM Cortex-A55 cores, combined with ARM Mali GPU and eIQ Neutron NPU. The i.MX95 SoC is supplemented with up-to 16GB RAM and 128GB eMMC. MCM-iMX95 peripheral interfaces include USB3.0, 2 PCIe, 2 RGMII, 5 CAN-FD, 8 UARTs and up-to 75 GPIOs. Display and camera connectivity is supported with dual LVDS, MIPI-DSI and dual MIPI-CSI.

Excellent connectivity, advanced graphics processing and small size make MCM-iMX95 a versatile solution for industrial HMI, building control, image processing, IoT gateways and medical devices.

Advantages of a Solderable System-on-Modules

MCM-iMX95 solder-down form-factor provides a number of important advantages compared to traditional processor modules:

• Enhanced Robustness – optimized for systems subjected to shock or vibrations and for applications that require conformal coating
• Reduced Height Profile – by eliminating connectors, solder-down SOMs offer a significantly reduced height profile
• Improved Signal Integrity – direct soldering minimizes signal loss and crosstalk, improving overall signal integrity
• Simplified Manufacturing – SMT assembly streamlines manufacturing and reduces production costs

For additional details, please refer to our Advantages of using SMT Solder-Down System-on-Modules article.

Specifications

CPU	NXP i.MX95, ARM Cortex-A55 up-to 6x cores, 2.0GHz
GPU and VPU	ARM Mali GPU, 4K video decode and encode
NPU	eIQ® Neutron NPU
Real-Time MCU	ARM Cortex-M7 + ARM Cortex-M33
RAM	Up-to 16GB LPDDR5
Storage	Up to 128GB of soldered eMMC
Display	LVDS, 2x 4-lane or 1x 8-lane , up to 1080p60
	MIPI-DSI, 4 data lanes, up to 4kp30
Camera	2x MIPI-CSI, 4 data lanes
Audio	Up-to 5x I2S / SAI
Network	2x RGMII
PCI Express	2x PCIe Gen 3 1x lane
USB	1x USB3.0 + 1x USB2.0
UART	Up-to 8x UART
CAN bus	Up-to 5x CAN-FD
General I/O	Up-to 2x SDIO, 7x I2C, 8x SPI, 75x GPIO
Debug	JTAG debug interface
Supply Voltage	3.45V to 4.4V
Package	180-pin, 0.8mm pitch QFN
Dimensions	34 x 42 x 3 mm
Temp. range	-40C to 85C

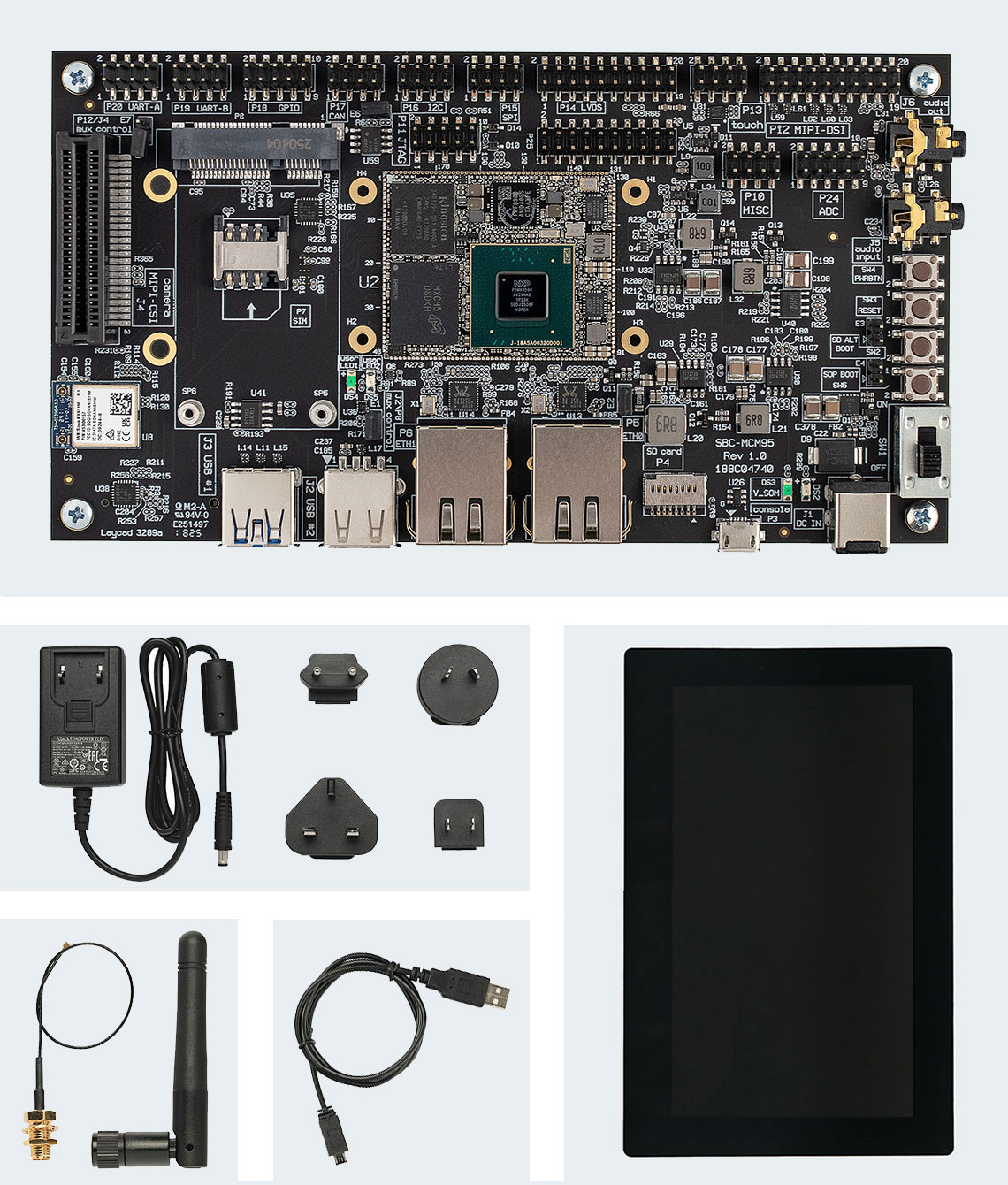

MCM-iMX95 Evaluation Kit

For evaluation and software development, MCM-iMX95 is provided with the EVAL-MCM-iMX95 evaluation kit, designed to allow easy access to all MCM-iMX95 functions.

The evaluation kit includes MCM-iMX95 SOM assembled on SB-MCMIMX95 carrier-board, optional 7″ LVDS LCD, optional LTE cellular modem, 12V PSU, cables and engineering technical support.

Hardware Design Support

To facilitate streamlined and rapid product development, Compulab provides MCM-iMX95 with a comprehensive set of documentation, reference design and support services:

• SB-MCMIMX95 carrier-board design package – schematics, BOM, PCB layout
• Direct technical support by Compulab design engineers
• Proven building blocks for all key interfaces and peripherals
• Design review by Compulab engineers provided free of charge

MCM-iMX95 Software

Compulab supports MCM-iMX95 with a full BSP and ready-to-run images for the Linux operating system. The MCM-iMX95 BSP includes Linux kernel 6.6, Yocto Project SDK and U-Boot boot-loader.

OTA updates are supported using a pre-configured Mender layer.

Price and Availability

MCM-iMX95 is now available through Compulab’s worldwide distribution channels and through direct sales (www.compulab.com).

MCM-iMX95 is offered in a variety of configurations starting from $74 for volume orders.

EVAL-MCM-iMX95 evaluation kit is offered at $345.

Detailed ordering information is available on the MCM-iMX95 product page.

About Compulab

Compulab is a leading designer and manufacturer of embedded computing products since 1992.
Compulab System on Modules are used in digital signage, telecommunication, industrial automation, gaming, medical devices, aerospace and marine systems and countless other applications.
