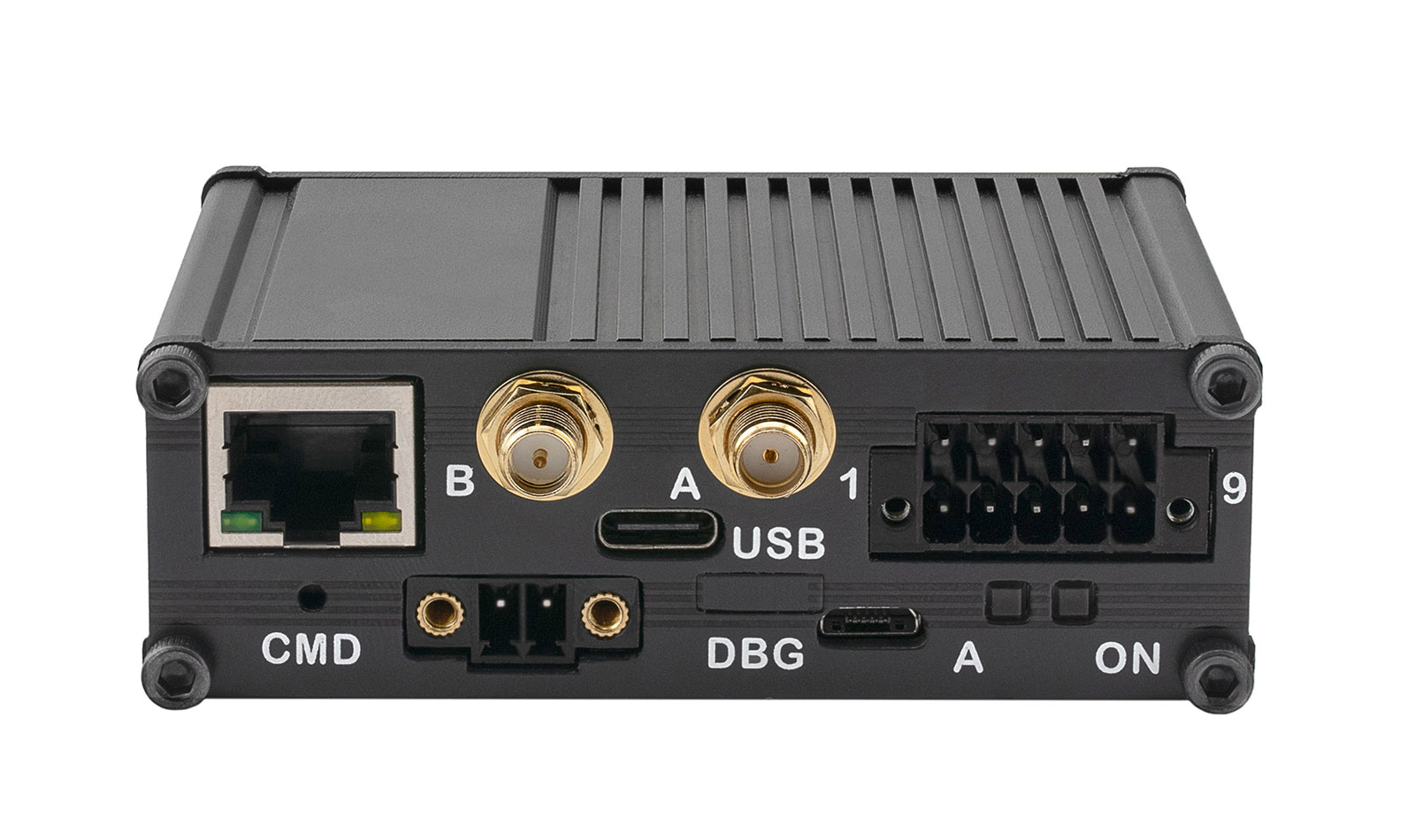

IOT-LINK Industrial IoT Gateway

Starting from $89

  • Ideal for industrial control and monitoring
  • Industrial build quality and reliability
  • Optimized for cost sensitive applications

Contact us
IOT-LINK Industrial IoT Gateway

Gateway Highlights

  • NXP i.MX93 CPU, dual-core Cortex-A53
  • LAN, WiFi, Worldwide LTE modem
  • 2x RS485 / CAN-FD , 3x DI / DO
  • Bluetooth mesh, Thread and Zigbee
  • Secure boot, TPM and Hardware Watchdog
  • Rugged, miniature housing - 83 x 28 x 55 mm
  • Debian Linux and Yocto BSP - Open SW Stack
  • 5 year warranty and 15 year availability

View full spec

Optimized for Industrial Use

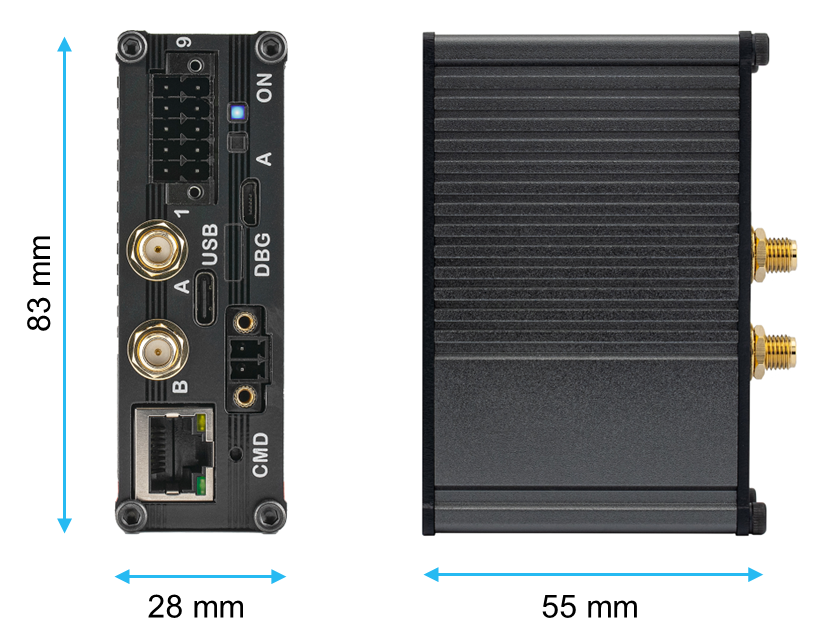

IOT-LINK side view
  • Designed for reliability and 24/7 operation
  • Wide temperature range of -40C to 80C
  • Supports DIN-rail and wall mounting
  • Customer O/S and application imaging service
  • ODM rebranding with custom logo and labeling
  • Also available as SBC and as System-on-Module
SW support

Debian Linux and Yocto BSP

  • Fully Open Software Architecture
  • Docker, MS Azure IoT and Node-RED
  • Support for OTA updates with Mender
  • Modbus RTU, Modbus TCP and MQTT
  • Support for BalenaOS platform
RED-LINK – IoT Project Starter Kit

RED-LINK IoT Project Starter Kit

  • Ready-to-use for IoT PoC and Rapid Prototyping
  • Integrated AIknow cloud platform
  • Fully pre-configured Node-RED library
  • Out of the box cloud connection
  • Plug-and-play sensor connectivity

Learn More

Why choose Compulab?

Long-term Availability

Industrial Build and Quality

Mainline Linux and Yocto

In-House Manufacturing

Direct Engineer Support

Configure-to-Order

Learn more about Compulab advantages

  • "Option" column specifies the configuration code required to have the particular feature.
  • "+" means that the feature is always available

CPU, Memory and Storage
CPUNXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz
+
RAM1GB – 2GB, LPDDR4
D
Storage16GB – 64GB eMMC flash, soldered on-board
N
Real-Time
Co-processor		ARM Cortex-M33, 250Mhz
+

Network
Cellular Modem4G/LTE CAT-1 bis cellular module, SIMCOM SIM7672
Worldwide LTE, UMTS/HSPA
JS7672G
4G/LTE CAT-4 cellular module, Telit LE910
Worldwide LTE, UMTS/HSPA
JT910G
SIM card socket
+
WiFi and Bluetooth802.11ax WiFi 6 and Bluetooth 5.4 BLE
Implemented with NXP IW611 module
1x RP-SMA antenna connector
WB
Wireless MeshBluetooth mesh, Thread, Zigbee
Nordic Semiconductor nRF52840 / Silicon Labs MGM240
WMx
LAN1x Gbit Ethernet, RJ45 connector
E

I/O
RS485
CAN bus		Up-to 2x RS485 (2-wire) | CAN-FD ports
Terminal-block connector
Fxx
Digital I/O3x digital outputs / inputs
24V compliant with EN 61131-2, terminal-block connector
DIO
USB1x USB2.0 host port, type-C connector
+
Debug1x serial console via UART-to-USB bridge, micro-USB connector
+
NXP SDP programming port, micro-USB connector
+

System
RTCReal time clock with on-board coin-cell battery
+
WatchdogHardware watchdog
+
SecuritySecure boot, implemented with i.MX93 AHAB module
+
TPM 2.0, Infineon SLB9673
+
Indicators1x programmable dual-color LED
1x power LED
+
POESupport for PoE (powered device)
POE

Electrical Specifications
Power Supply
12V-24V DC (-20%/+20%)
Reverse voltage protection
Power Consumption1W - 5W, depending on system load and configuration

Mechanical Specifications
Dimensions
(H x W x D) 		83 x 28 x 55 mm
Housing materialAluminum
CoolingPassive cooling, fanless design
Weight170 gram

Compliance
RegulatoryFCC, CE, UKCA
EMCEN 55032/5, EN 61000-6-2, EN 61000-6-3
SafetyEN/UL/IEC 62368-1

Reliability and Environmental
MTTF> 200,000 hours
Warranty5 years
Operation TemperatureCommercial: 0° to 60° C
Industrial: -40° to 80° C
Storage Temperature-40° to 85° C
Relative Humidity10% to 90% (non-condensing)
AR is not supported on this device

Hardware Resources

Hardware Documents
Design Resources

Software Resources

    Debian Yocto Linux U-Boot

      Archive

      For previous versions of the IOT-LINK software packages, please refer to the IOT-LINK software archive.

      Ordering for Evaluation and Testing

      Order online
      • For initial testing and development, we recommend ordering one of the stock models
      • It is recommended to order together with the IOT-LINK EVK SET
      • WiFi or MESH modules can be ordered as separate items

      Volume Orders

      • For quantities of up-to 20 gateways, we recommend ordering through Compulab Webshop
      • For quantities of over 20 units, it is recommended to order with our Sales Team

      Product Configuration Options

      P/N template: IOT-LINK-Dx-Nx-[E]-[Wxx]-[Jxx]-[FAx]-[FBx]-[DIO]-[POE]-[Xx]-[Tx]

      FeatureOptionsP/N code
      RAM size1GB
      2GB      		D1
      D2
      Storage
      (soldered on-board)      		16GB eMMC (MLC)
      32GB eMMC (MLC)
      64GB eMMC (MLC)      		N16
      N32
      N64
      Ethernetnone
      1x GbE port      		-
      E
      Wireless cardnone
      802.11ax WiFi 6 and Bluetooth
      Mesh - Nordic NRF52840
      Mesh - Silicon Labs MGM240P      		-
      WB
      WMN
      WMS
      Cellular modemnone
      LTE CAT1 bis, SIMCOM SIM7672 (global)
      LTE CAT4, Telit LE910C4 (global)
      		-
      JS7672G
      JT910G
      I/O port Anone
      RS485
      CAN-FD      		-
      FARS4
      FACAN
      I/O port Bnone
      RS485
      CAN-FD      		-
      FBRS4
      FBCAN
      Digital I/Onone
      3x DO / DI      		-
      DIO
      Software Preloadingnone
      Debian Linux
      Custom image      		-
      XL
      Xx
      Temperature rangeCommercial
      Industrial Certified
      Industrial Tested      		-
      TIC
      TIT

      The following accessories are not included with the gateway and need to be ordered separately.

      Item
      Description
      P/N and Docs

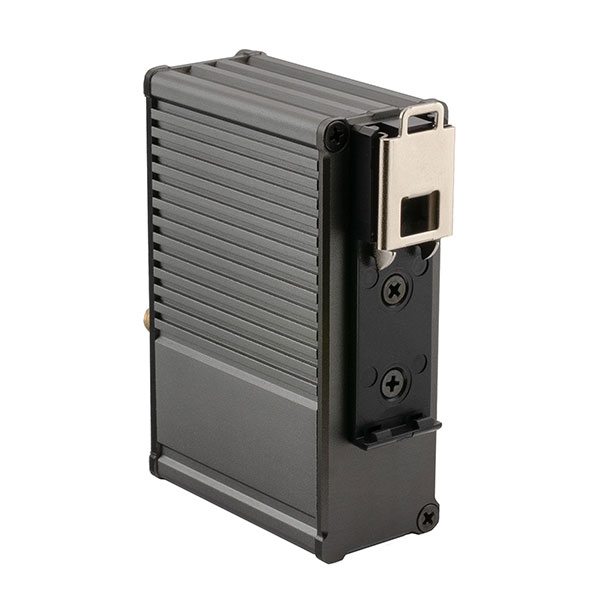

      IOT-LINK DIN rail clip
      		DIN rail clip
      Clip for mounting the gateway on a DIN rail
      IOTL-ACC-DINCLP

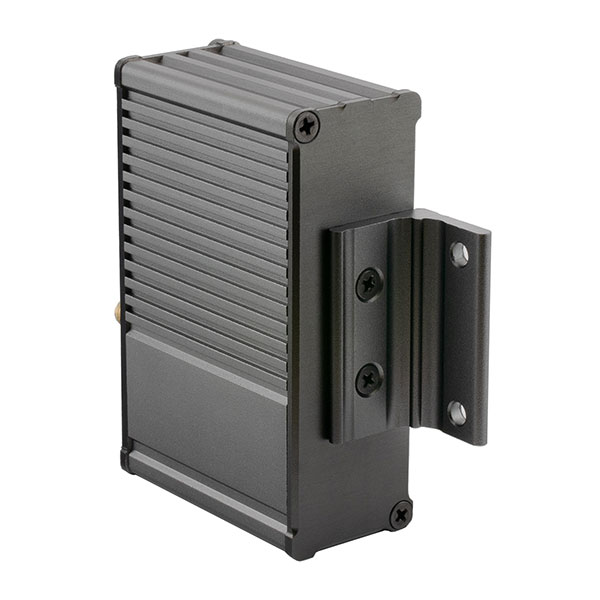

      IOT-LINK horizontal mounting bracket
      		Horizontal mounting bracket
      Bracket for mounting the gateway on a surface
      IOTL-ACC-HBRKT

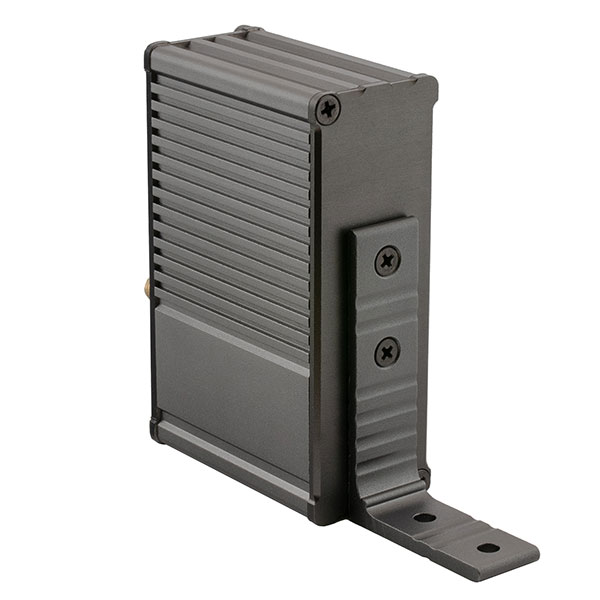

      IOT-LINK vertical mounting bracket
      		Vertical mounting bracket
      Bracket for mounting the gateway on a surface
      IOTL-ACC-VBRKT
      IOT-LINK cellular antenna
      		Cellular antenna
      Cellular rubber duck antenna with SMA connector
      Can be used together with cellular antenna extender or assembled
      on the gateway SMA connector
      IOTG-ACC-ANTCELL

      datasheet

      3D model
      IOT-LINK cellular antenna extender
      		Cellular antenna extender
      2m antenna extender cable with magnetic mount
      Should be used together with cellular antenna
      IOTG-ACC-ANTEXT

      datasheet
      IOT-LINK WiFi / BT antenna
      		WiFi / BT antenna
      2.4GHz / 5GHz rubber duck antenna with RP-SMA connector
      IOTD-ACC-ANTWIFI

      datasheet

      3D model

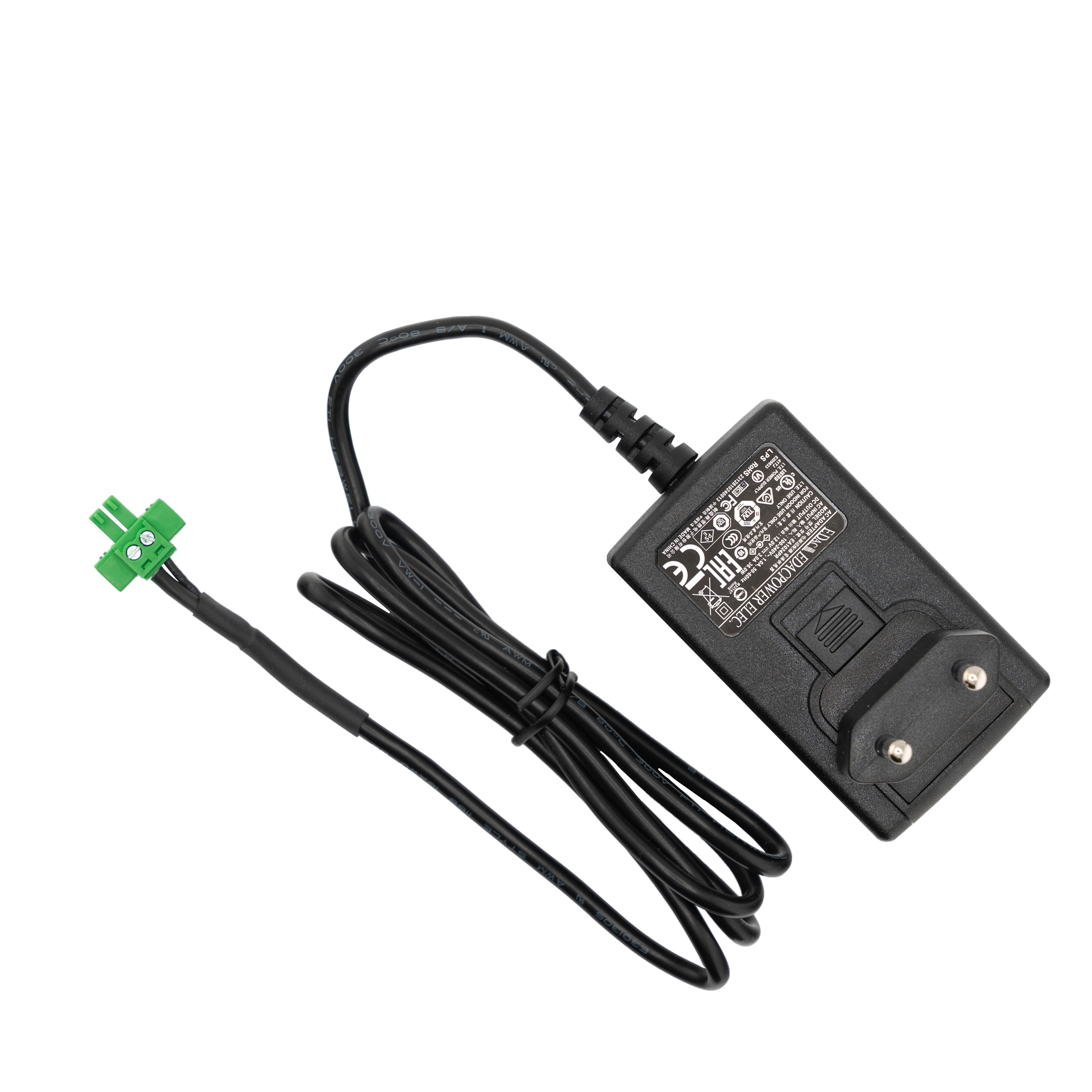

      IOT-LINK PSU
      		PSU with terminal plug adapter
      Wall mount PSU with terminal plug adapter
      Input 100-240VAC 50/60Hz, 36W output 12VDC 3A
      Includes US, EU, UK, AU AC blades
      IOTL-ACC-PSUTB2

      datasheet
