MCM-iMX93 is a tiny, ultra low cost solder-down SMD System-on-Module based on NXP i.MX 93

08-May-2023 – Compulab introduces the MCM-iMX93 SMD System-on-Module, built around NXP i.MX 93 System-on-Chip family.

Designed to bring out the full capabilities of the i.MX 93 SoC, MCM-iMX93 provides up-to 2GB RAM and 64GB eMMC, 2x Ethernet RGMII, 2 USB ports, 2 CAN-FD, 8 UARTs and up-to 80 GPIOs. Display connectivity is supported with LVDS, MIPI-DSI and parallel RGB.

Excellent connectivity, low cost and small size make MCM-iMX93 a versatile solution for many applications such as building and industrial control, medical devices, IoT gateways and measurement equipment.

Advantages of a Solder-Down SOM

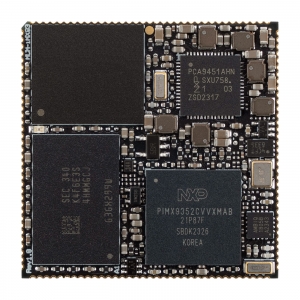

MCM-iMX93 SMD system-on-module

MCM-iMX93 surface-mount form-factor provides a number of advantages:

  • Lowest cost – SMT assembly saves cost of connectors and manual SOM mounting
  • Smallest foot-print – requires the least amount of space on the customer’s carrier-board
  • Increased robustness – optimized for systems subjected to shock or vibrations and for applications that require conformal coating
  • Easily assembled – solderable as a regular QFN component. Designed specifically for easy SMT assembly

MCM-iMX93 Software

Compulab supports MCM-iMX93 with a full BSP and ready-to-run images for the Linux operating system. The MCM-iMX93 BSP includes Linux kernel 6.1, Yocto Project SDK and U-Boot boot-loader.

OTA updates are supported using a pre-configured Mender layer.

MCM-iMX93 evaluation kit

Hardware Design Support

To facilitate streamlined and rapid product development, Compulab provides MCM-iMX93 with a comprehensive set of documentation, reference design and support services:

  • SB-MCMIMX93 carrier-board design package – schematics, BOM, PCB layout
  • Direct technical support by Compulab design engineers
  • Proven building blocks for all key interfaces and peripherals
  • Design review by Compulab engineers provided free of charge

MCM-iMX93 Evaluation Kit

For evaluation and software development, MCM-iMX93 is provided with the EVAL-MCM-iMX93 evaluation kit, designed for easy evaluation of all MCM-iMX93 functions.

The evaluation kit includes MCM-iMX93 and SB-MCMIMX93 hardware set, optional 7″ LVDS LCD, optional LTE cellular modem, 12V PSU, cables and engineering technical support.

Specifications

MCM-iMX93 - NXP i.MX 93 System-on-Module block diagram
CPU NXP i.MX9352, dual-core ARM Cortex-A55, 1.7GHz
NPU Arm® Ethos™ U-65 microNPU
Real-Time MCU ARM Cortex-M33
RAM Up-to 2GB LPDDR4
Storage Up to 64GB of soldered eMMC
Display MIPI-DSI, 4 data lanes, up to 1920 x 1080 @60Hz
LVDS, 4 lanes, up to 1366 x 768 p60
parallel RGB, up to 1366 x 768 p60
Camera MIPI-CSI, 2 data lanes
Audio Up-to 2x I2S / SAI
Network 2x Ethernet RGMII
USB 2x USB2.0 dual-role ports
UART Up-to 8x UART
CAN bus Up-to 2x CAN-FD
General I/O Up-to 2x SDIO, 6x I2C, 8x SPI, 6x PWM, 80x GPIO
Debug JTAG debug interface
Supply Voltage 3.45V to 5.5V
Package 140-pin, 0.8mm pitch QFN
Dimensions 30 x 30 x 3 mm
Temp. range -40C to 85C

Price and Availability

MCM-iMX93 is now available through Compulab’s worldwide distribution channels and through direct sales (www.compulab.com).

MCM-iMX93 is offered in a variety of configurations starting from $32 for volume orders.

EVAL-MCM-iMX93 evaluation kit is offered at $245.

Detailed ordering information is available on the MCM-iMX93 product page.
