CompuLab introduces new type of extremely miniature SoMs based on company’s new “Ultra-compact Multilevel Module” technology

Yokneam, Israel – 1-June-2017 – CompuLab introduces a new type of tiny System-on-Module products built with CompuLab’s new “Ultra-compact Multilevel Module” (UCMM) technology. UCMM allows to achieve exceptional level of miniaturization with no compromise on feature-set, packing a fully featured SoM into a form-factor which is only a fraction of typical size of comparable modules. UCM-iMX7, the first UCMM product introduced by CompuLab, measures just 27 x 30 mm – three times smaller than comparable products with a similar feature-set.

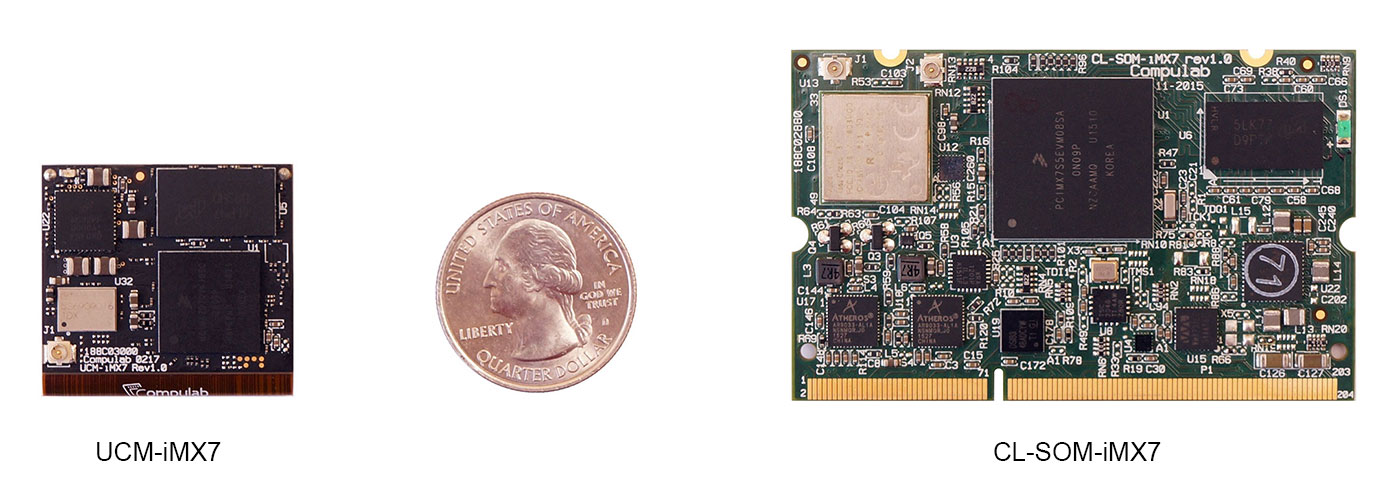

CompuLab UCM-iMX7 vs CL-SOM-iMX7

Designed into a stamp-sized foot-print, UCM-iMX7 features a dual-core i.MX7 1GHz processor, 2GB of RAM, 64GB of eMMC storage, as well as WiFi, Bluetooth and Gbit Ethernet interfaces. In addition, a wide range of peripheral interfaces including PCIe, 5 USB2 ports, parallel RGB, 7 UARTs and GPIOs are available on the two miniature 100-pin connectors.

UCM-iMX7 is provided with a Linux BSP that includes Linux kernel 4.1.15, Yocto Project file-system and U-Boot boot-loader. CompuLab will also support UCM-iMX7 with mainline Linux and upstream Yocto Project.

Industrial temperature range of -40° to 85° C allows UCM-iMX7 to support operation in harsh environments and outdoor installations.

UCM-iMX7 is an ideal solution for applications that require powerful processing in extremely miniature size such as:

  • Autonomous drones with capability of visual object recognition
  • VR, augmented reality and smart glasses
  • Wearable computing, and especially wearable medical devices
  • Professional handhelds customized per specific industry requirements
  • Smart IOT cameras

Compulab has also introduced a miniature open frame smartwatch-like gadget built around the UCM-iMX7 module with a lithium-ion battery, a 1.5” LCD and a thin interconnect board, all sandwiched into one compact 27 x 30 mm device. The gadget is intended only for technology proof demonstration and CompuLab’s UCM-iMX7 module does not target the smartwatch market.

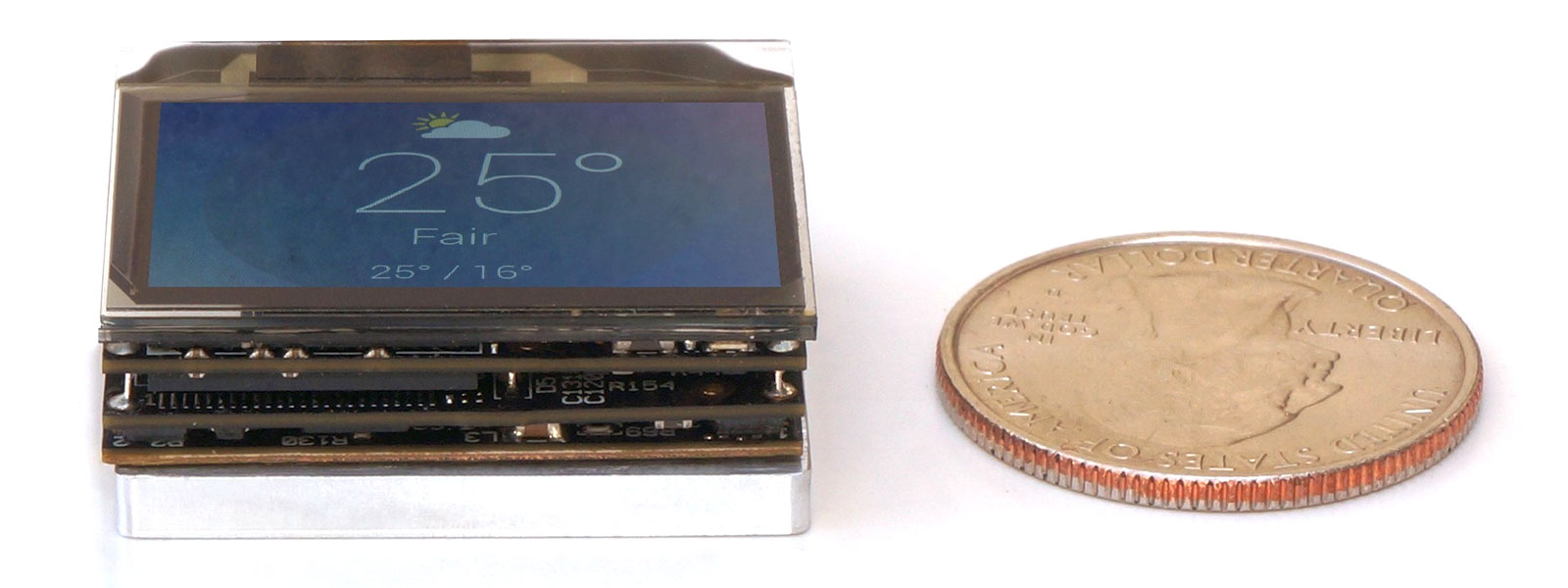

CompuLab CLF-iMX7

UCMM Technology

The UCMM technology allows highly efficient packing of components into several vertical levels. Typical UCMM module is composed of two or more rigid printed circuit boards (PCBs) and one or more flexible layers that route interconnection signals between the rigid PCBs. Flexible layers allows to bend and fold the rigid PCB parts to form vertical stack of two or more PCBs, efficiently decreasing SoM foot-print at the cost of slightly increased height.

Allowing to design higher processing power into smaller form-factor devices, UCMM technology offers a unique solution for performance demanding systems requiring continuous image processing, polished UMI or streaming data to cloud.

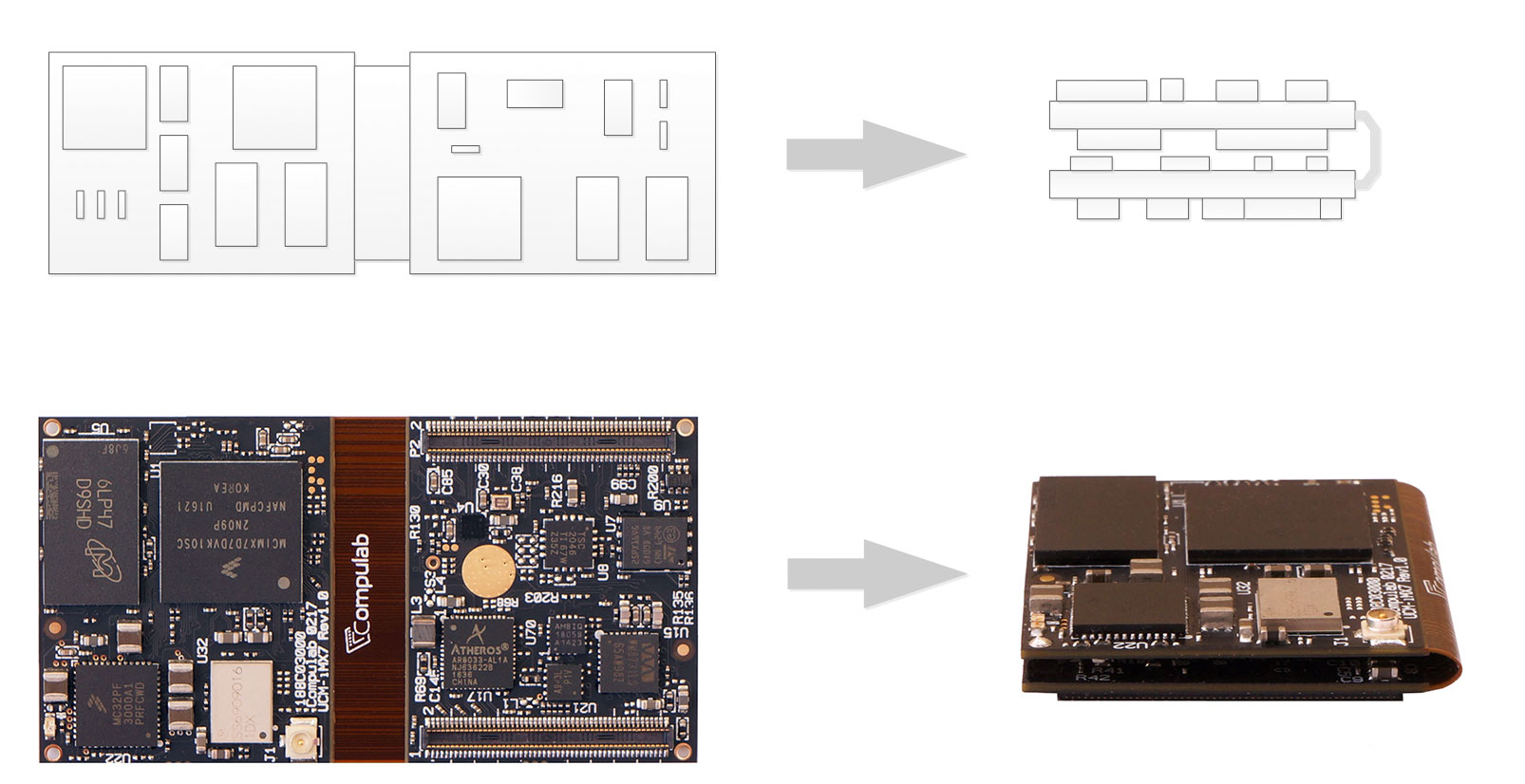

CompuLab's UCMM SoM Technology

UCM-iMX7 Specifications

CPU Freescale i.MX7 Dual / Solo ARM Cortex-A7 SoC, 1GHz
Co-processor ARM Cortex-M4, 200MHz
RAM Up to 2GB DDR3L-1066
Storage Up to 64GB on-board eMMC
Up-to 1GB on-board SLC NAND
Display Parallel 24-bit display interface, up to 1920 x 1080
MIPI-DSI, up to 1400 x 1050
Touchscreen 4-wire resistive touch-screen support
Camera Parallel camera interface, up to 24-bit
MIPI-CSI, 2 data lanes
Audio Audio codec with stereo line-out, line-in, mic
Network Gigabit Ethernet
WiFi 802.11b/g/n + Bluetooth 4.1 BLE
PCI Express PCIe x1 Gen. 2.1
USB 1x USB2.0 OTG + 4x USB2.0 host ports
UART Up to 7x UART ports
SDIO Up to 2x MMC/SD/SDIO interface
General I/O Up to 3x I2C, 3x SPI, 2x CAN, 6x Timer, 112x GPIO
ADC Up to 4x general-purpose ADC inputs
Power 3.2V to 4.5V / Li-Ion battery
Dimensions 27 x 30 x 8 mm
Temp. range -40 to 85°C

Availability and Pricing

UCM-iMX7 will be available in June 2017 through CompuLab’s worldwide distribution channel and through direct sales (
UCM-iMX7 is available in a variety of configurations starting from $39 for volume orders.
EVAL-UCM-iMX7 evaluation kit will be offered at $475.
Detailed ordering and pricing information is available at UCM-iMX7 product page.
