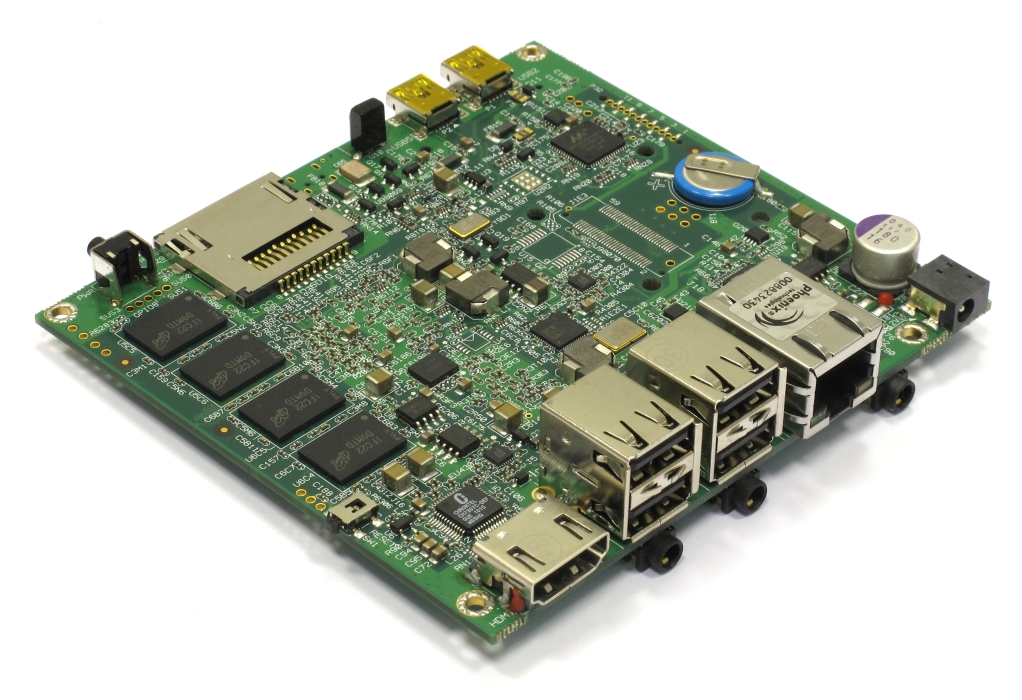

SBC-FITPC2 Single Board Computer

  • Single board PC in a miniature form factor.
  • Low power consumption and fan-less operation.
  • Wide range of high-speed interfaces provides extensive connectivity.

Product Highlights

  • Full-featured PC single board computer, tiny and power saving
  • Intel Atom Z530 CPU @ 1.6 GHz
  • Intel US15W chipset
  • 1GB DDR2
  • DVI Digital display interface, up to 1920x1080
  • Harddisk interface
  • PXE (Ethernet) and USB boot capability
  • HD Audio, line-out 2.0 / mic in / line-in
  • 1000 BaseT Ethernet port
  • 802.11b/g/n WiFi
  • Six USB 2.0 ports
  • miniSD Socket
  • IR receiver
  • Phoenix BIOS
  • Single 12V supply, 5W, fanless operation
  • Dimensions - 104 x 96 x 23 mm
  • Runs Windows XP / Vista, Windows 7 and Linux

Description

The SBC-FITPC2 is a tiny, single board PC based on Intel's Atom Z530 processor and US15W chipset. It runs all standard operating systems and software packages. The SBC-FITPC2's unique advantages include exceptionally small size, quiet, fanless operation and very low power consumption. The rich feature set of the SBC-FITPC2 is customizable according to the price / performance targets of the user's application. With a price starting as low as $195, it makes an ideal platform for implementation applications such as home entertainment and point-of-sale.

  • Option" column specifies the configuration code required to have the particular feature.
  • "+" means that the feature is always available.

CPU, Memory and Busses

FeatureSpecificationsOption
CPUIntel Atom Processor: Z530 - 1.6Ghz @533MHz FSB, or Z510 - 1.1GHz @400MHz FSB. L2-512KB (dynamic sizing), L1- 32KB IC, 24KB DC. Intel Deep Power Down (C6) technology support C
ChipsetPoulsbo US15 Intel System Controller Hub (INTEL SCH)+
Memory1 GB DDR2, 533/400 MHz, 64-bitD
Display interfaceSDVO based DVI interface. Hotplug support.+
AudioRealtek ALC260, High Definition Audio, Line Out, Line In, Microphone InSA
EthernetIntegrated Gigabit PCI-Express controller Realtek RTL8111E
HDD InterfaceSATA-II, using Marvell 88SA8052S
WiFi802.11 b/g capabilities, using WMG2503 mini PCIE module based on the Realtek RTL8187 chipset. Up to 54 Mbps, 2.4 GHz band.W
USB6 external USB ports: 3 UHCI devices (2 port/device), one EHCI (8 port/device ) support + 1 on the mini PCIE connector (EHCI only) with max. rate up to 480 Mb/s+
InfraRedUSB based infra red receiverI
BIOSPhoenix SecureCore BIOS+
mini PCI Express includes PCIEx1, USB (EHCI), SMB, power supplies. Available only if "W" option isn't used+
SDIO slotmini SD connector supporting SDIO1.1 and MMC4.1+
Extensions3 GPIO pins, LPC bus, I2C bus

Electrical, Mechanical and Environmental Specifications

Active consumption5W basic configuration, 2W WiFi
Dimensions104 x 96 x 23 mm
Weight90 gram
MTBF> 100,000 hours
Operation temperatureCommercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Storage temperature-40° to 85° C
Relative humidity 10% to 90% (operation)
05% to 95% (st
