TENSOR – Industrial PC’s Products Line

Tensor computer consists of motherboard, enclosure and wide variety of modules providing interface and support features.

Many different types of interface modules are available. User can select the required modules and this way to configure Tensor computer to match his specific needs.

Use Cases Examples

Lab Sensors Processor

Tensor - Lab Sensor Processor

Learn more >>

Special Purpose Router | Firewall

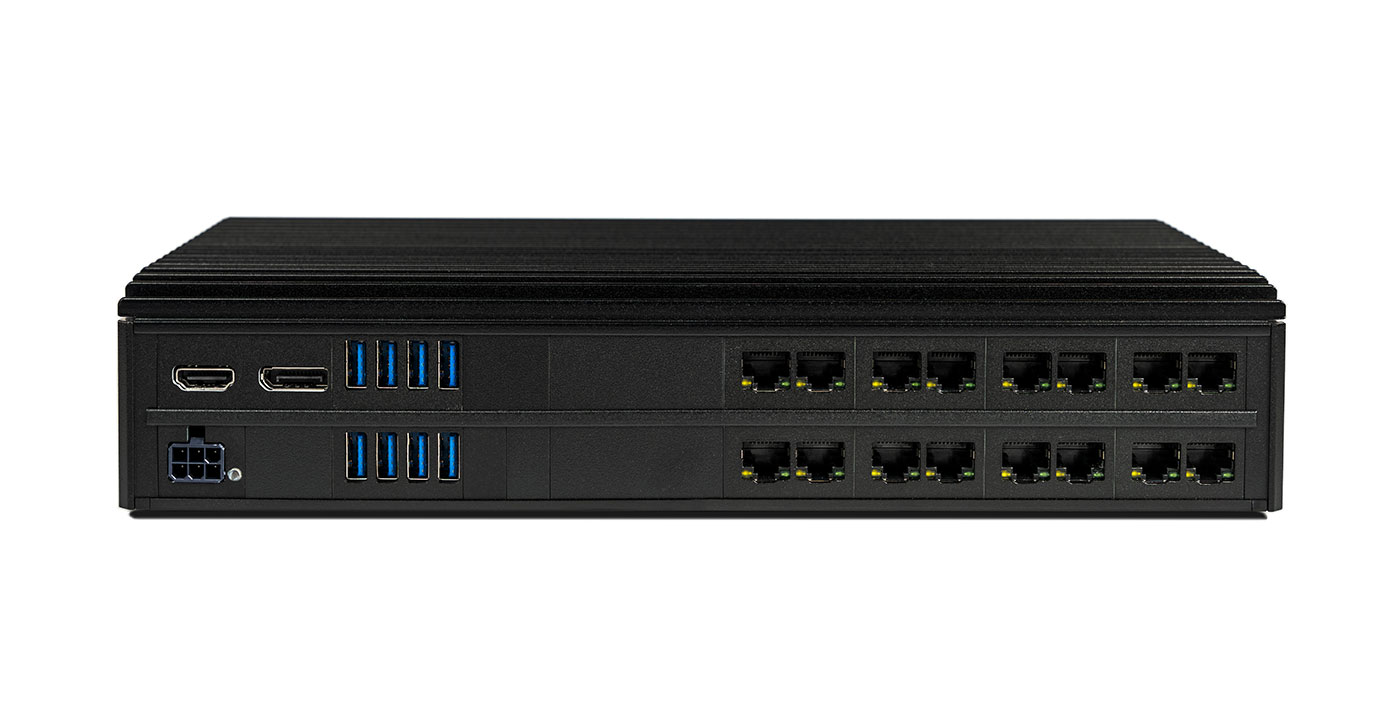

Tensor - Special Purpose Router

Learn more >>

Factory Automation

Tensor - Factory Automation

Learn more >>

Greenhouse Controller

Tensor - Greenhouse Controller

Learn more >>

Wireless LAN/WAN gateway

Tensor - Wireless LAN/WAN gateway

Learn more >>

Tensor Resources and Peripherals

The table below specifies Tensor features based on available functional modules.

Enclosure size is selected according to type and quantity of modules chosen and according to CPU power consumption.

Please note “Max QTY” column. It specifies maximum number of interfaces or resources of specific type, which can fit into enclosure. The minimum quantity can be zero for most of features, i.e. almost all resources are optional and can be omitted if they are not required.

View full specifications

Feature

Description

Max QTY

CPU
options
Intel Xeon E-2276ML: 6 Cores, 12 Threads, 12 MB cache, ECC support
Intel Core i7-9850HL: 6 Cores, 12 Threads, 9 MB cache
Intel Core i5-9300H: 4 Cores, 8 Threads, 8 MB cache
Intel Core i3-9100HL: 4 Cores, 4 Threads, 6 MB cache, ECC support
Intel Celeron C4930E: 2 Cores, 2 Threads, 2 MB cache, ECC support
ChipsetIntel CM246
RAM2x SODIMM, DDR4-2400 ECC or Non-ECC
64 GB
Graphics and DisplayIntegrated Intel UHD Graphics P630 / 630 / 610
DisplayPort 1.2 – 4K @ 60 Hz or HDMI 1.4 – 4K @ 30 Hz
3
PCIe 3.0PCIe lanes are used by Tensor interface modules
38 lanes
NVMe M.2Size 2280 | 2260 | 2242, PCIe Gen 3 x4 interface
8
SATA 3
8
SATA M.2M.2 key-M, size 2280 | 2260 | 2242
2
mSATA
2
USBUSB 3.1
USB 2.0
USB power in S5 can be configured per port
40
AudioTI PCM2912A Codec, 3.5mm jacks, headphones and mic.
5
Serial portsEach port supports RS232, RS485 half/full duplex and can be configured independently
DB9 connector
40
CANbusSupports CAN 2.0A Specifications and ISO 11898-2
Bit rate of up to 1Mbit/s
Isolation per UL 1577, including isolated DC power
Operated by a dedicated 32bit microcontroller
Built-in support in Windows, doesn’t requires driver
USB native device in Linux
DB9 connector
10
GPIOsProgrammable input or output per line
Selectable 3.3V or 5V levels
Isolation per UL 1577
Operated by a dedicated 32bit microcontroller
Terminal block connector
100
Gbit EthernetIntel i210, RJ45 connector
20
Gbit Ethernet with PoE source (PSE)POE+ 802.3at, 30W per port
Intel i210. Each port is on an independent PCIe lane
RJ45 connector
12
Cellular Modem
(LTE)
Universal LTE cat 6 - Sierra EM7455. Other modems can be installed.
SIM card tray optionally accessible from the outside
Number of antennas as required by modems can be installed
9
Wi-Fi and BluetoothWi-Fi 6 Bluetooth 5.1 by Intel AX200. Other WiFi adapter can be installed.
Number of Wi-Fi antennas as required
9
M.2 socketSeveral key options:
key E
key B: each has a SIM card tray optionally accessible from the outside
key M: size up to 2280, PCIe x4, integrated cooling
9
Mini PCI ExpressSIM card tray optionally accessible from the outside
9
Trusted Platform ModuleTPM 2.0 using Infineon SLM 9670AQ2.0
Features: RSA-2048, ECC-256, SHA-256, EAL4+
Out-of-band managementSupervisor micro-controller featuring:
Safe remote-BIOS-update
Powering up / powering down the system
Advanced watchdog
System recovery
BIOSAMI Aptio V
Enclosure width options20 cm | 30 cm
Width is determined according to type and quantity of interfaces installed on front and back panels
Enclosure height options2.5 cm | 3.5 cm | 4.9 cm
Height is determined according to the type of installed interfaces.
4.9 cm high is for two rows of interface connectors
Cooling ribsNo ribs | 1 cm ribs | 2 cm ribs
Ribs type selected according to power dissipated by specific configuration, and according to designated operation environment
Mounting bracketsVESA | Wall | DIN-rail
Input voltage 12V – 56V
Supported input voltage range depends on the power module used
Power consumption20W – 40W typical
Product containing large amount of interfaces may consume higher power
Operating temperature range-40°C to 70°C (industrial temperature range)
Commercial temperature range is also available at lower price
Relative humidity5% – 95% non-condensing
