SBC-iMX8M-Mini - NXP i.MX8M Mini Single Board Computer

  • High performance graphics and image processing
  • Wide range of high-speed interfaces
  • Optimized for industrial embedded applications

i.MX8M Mini processor

NXP i.MX8M Mini processor

  • Quad-core ARM Cortex-A53 CPU, 1.8GHz
  • Integrated 2D/3D GPU and 1080p VPU
  • Real-time ARM Cortex-M4 co-processor
  • SBC Highlights

    Feature Highlights

  • Up to 4GB LPDDR4 and 64GB eMMC
  • MIPI-DSI interface, up to 1080p60
  • Certified dual-band WiFi 802.11ac, BT 4.2
  • mini-PCIe, Gbit Ethernet, 2x USB, RS232
  • View full spec

    SW support

    Yocto Linux and Android

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system, Android and U-Boot
  • Mainline Linux kernel support
  • Why choose CompuLab?

    10-year Availability

    Direct Engineer Support

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    • The "SB option" column specifies the SB-UCMIMX8 carrier board P/N code required for a particular feature. The "SOM option" column specifies the UCM-iMX8M-Mini P/N code required for a particular feature. SBC-iMX8M-Mini feature-set is a combination of features provided by the attached UCM-iMX8M-Mini and the features implemented on SB-UCMIMX8. For a particular feature to be present, both the SOM and SB options of that feature must be implemented.
    • "+" means that the feature is always available, regardless of P/N code.
    FeatureSpecificationSB OptionSOM Option

    System Core

    CPU
    Graphics
    RAM
    Storage
    Please refer to UCM-iMX8M-Mini specifications

    Display and Camera

    LCD panelMIPI-DSI interface, up to 1920x1080, FPC connector
    Capacitive touch-screen interface, FPC connector
    Fully supports Startec KD050HDFIA020 5" 1280x720 LCD panel
    +
    +
    CameraMIPI CSI, 2x12 B2B connector
    Compatible with LI-OV5640-MIPI-AF camera module
    +
    +

    Network

    Ethernet1000/100/10Mbps Ethernet port, RJ45 connector
    +
    E
    WiFi802.11a/b/g/n/ac WiFi interface
    Broadcom BCM43353 chipset
    +
    WB
    BluetoothBluetooth 4.2 BLE
    +
    WB
    CellularSupport for cellular modem (via mini-PCie socket)
    On-board micro-SIM card socket
    +
    +

    Audio

    Analog AudioAnalog stereo output, line-in, 3.5mm jacks
    Implemented with the CL-SOM-iMX8 audio codec
    +
    +
    Digital AudioS/PDIF input/output, 3.5mm jacks
    +
    +

    I/O

    PCI Expressmini-PCIe socket, full-size
    +
    +
    USB1x USB2.0 OTG, micro-USB connector
    +
    +
    1x USB2.0 host, type-A connector
    +
    +
    MMC / SDIOMMC / SD / SDIO interface. Micro- SD socket.
    +
    +
    Serial1x serial debug port via UART-to-USB bridge, micro-USB connector
    +
    +
    1x serial debug port via RS232 transceiver, ultra-mini serial connector
    * mutually exclusive with serial debug port via USB
    +
    +
    Up-to 2x UART, 3.3V levels, 100-mil header
    +
    +
    SPIUp-to 1x SPI interface, 100-mil header
    +
    +
    I2CUp-to 2x I2C interface, 100-mil header
    +
    +
    GPIOUp-to 34x GPIO, 100-mil header
    +
    +

    System and Debug

    RTCReal time clock operated from on-board coin-cell battery
    +
    +
    JTAGJTAG debug interface, 100-mil header
    +
    +

    Electrical Specifications

    Supply Voltage
    Unregulated 8V to 18V
    Digital I/O voltage3.3V

    Mechanical Specifications

    Dimensions118 x 118 x 22 mm
    Weight125 gram

    Environmental and Reliability

    MTTF> 200,000 hours
    Operation temperature (case)Commercial: 0° to 70° C
    Extended: -20° to 70° C
    Industrial: -40° to 85° C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz
    SBC-iMX8M-Mini block diagram

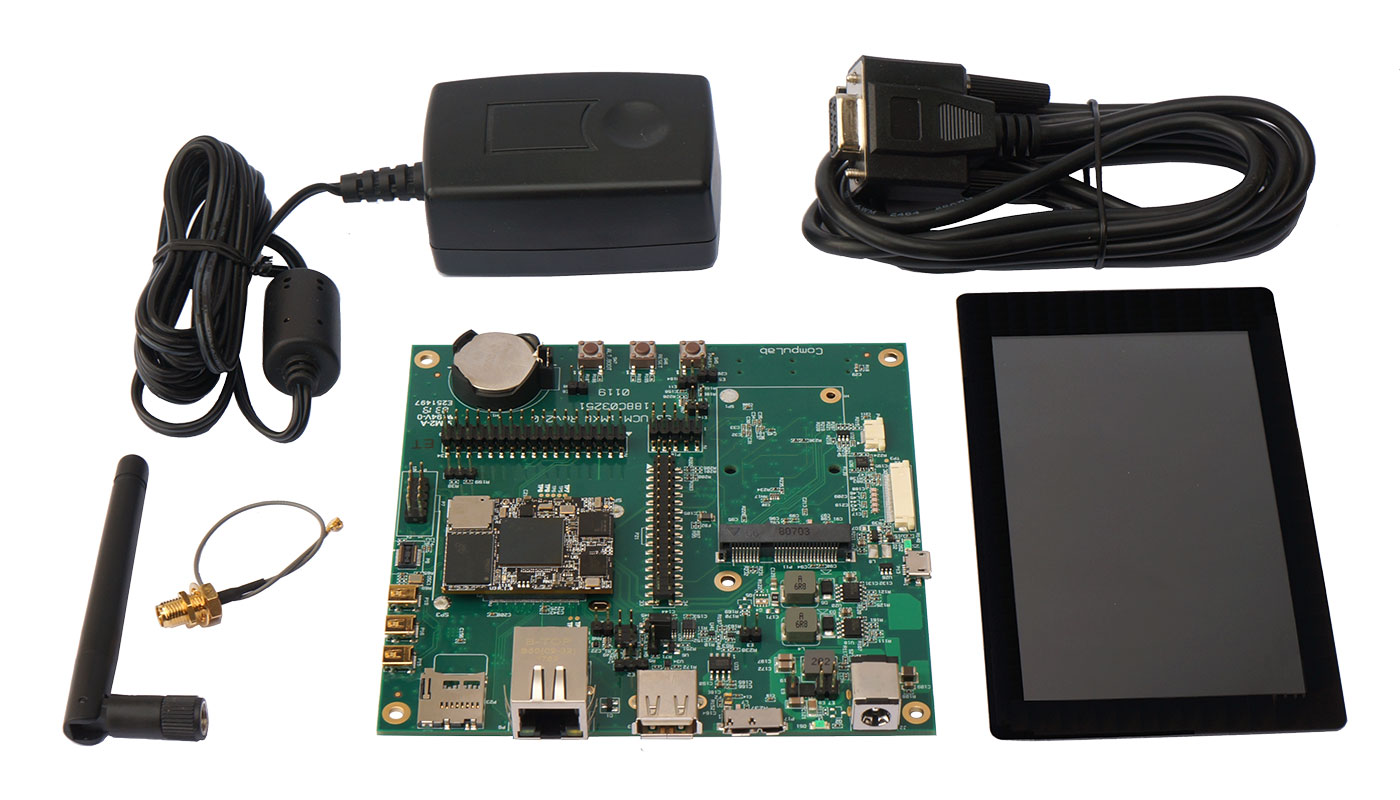

    UCM-iMX8M-Mini and SBC-iMX8M-Mini Evaluation Kit

    Kit Price: $385

    Package contents

    Hardware

    • UCM-iMX8M-C1800QM-D2-N16-E-WB
    • SB-UCMIMX8 carrier board
    • 5" WXGA LCD with capacitive touch panel
    • WiFi antenna and cable
    • Serial port cable
    • USB cable and adapter
    • LI-OV5640 camera module
    • 12V power supply

    Technical Support

    • Technical support for 12 months.
    • Schematics review of the customer's carrier board design.
    • LCD panel compatibility verification and driver adaptation service.
    • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

    Product status: Intro

    The CompuLab part number specifies all options available for a particular product.
    Note: The SB-UCMIMX8 carrier-board must contain a UCM-iMX8M-Mini module for the implementation of a self-contained SBC. Options specified on this page refer to SB-UCMIMX8 only.
    P/N template: SB-UCMIMX8-[Tx]

    Minimal Configuration

    Minimal configuration P/N: SB-UCMIMX8
    1K-units price
    $67

    Optional Features

    FeatureOptionsP/N codeAdd ($)
    Temperature rangeCommercial
    Extended
    Industrial
    -
    TE
    TI
    -
    10
    50
    Cables, connectors and accessoriesclick here
    • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

    Small Quantity Orders

    Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

    QTYFactor
    1K1.0
    5001.2
    1001.5
    102.0
    13.0
