MCM-iMX95 - i.MX 95 SMD System-on-Module

  • High performance graphics and image processing
  • Optimized for shock and vibrations resistance
  • Ideal for space constrained and portable applications

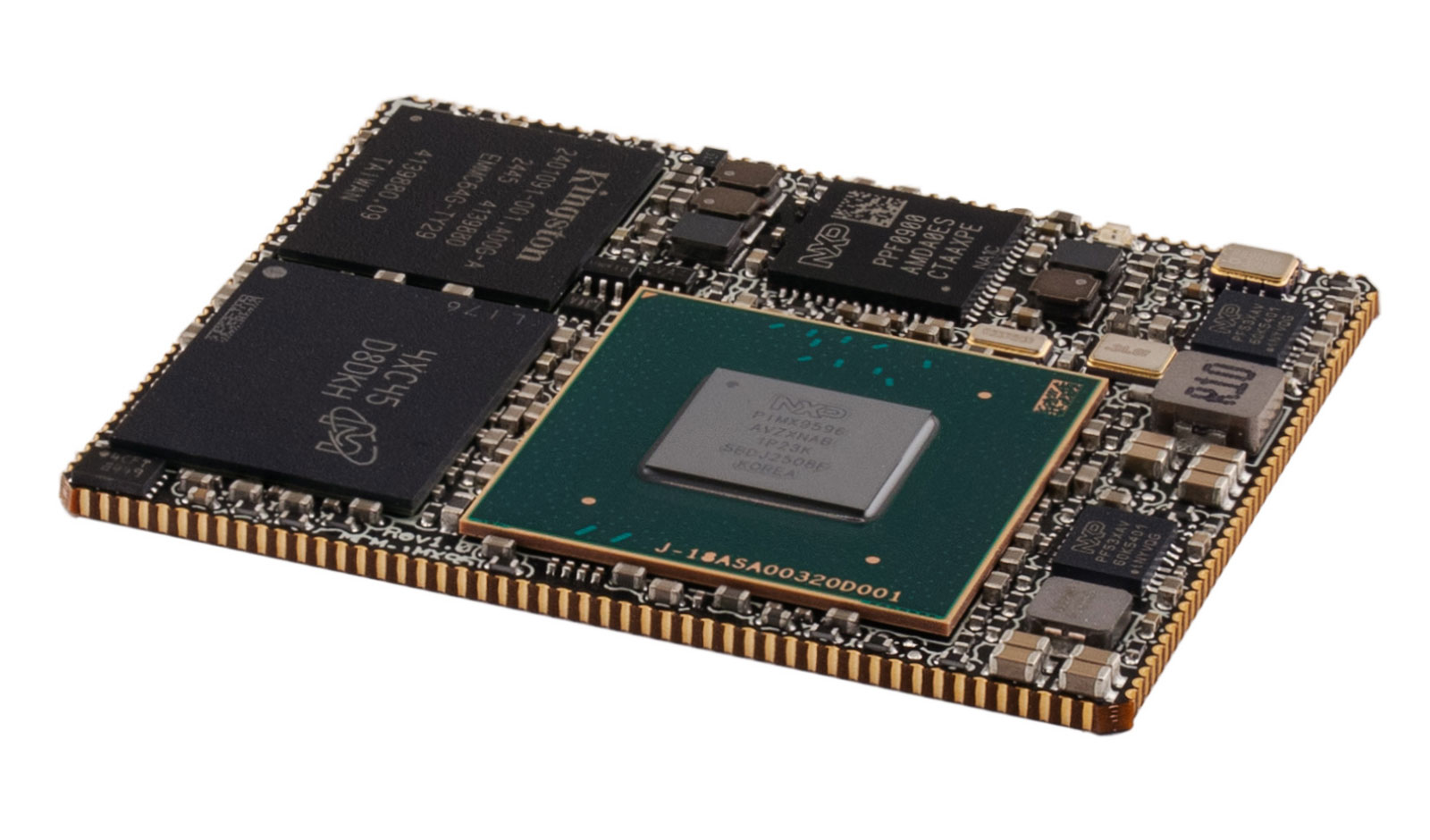

i.MX95 SoM in solder-down QFN package

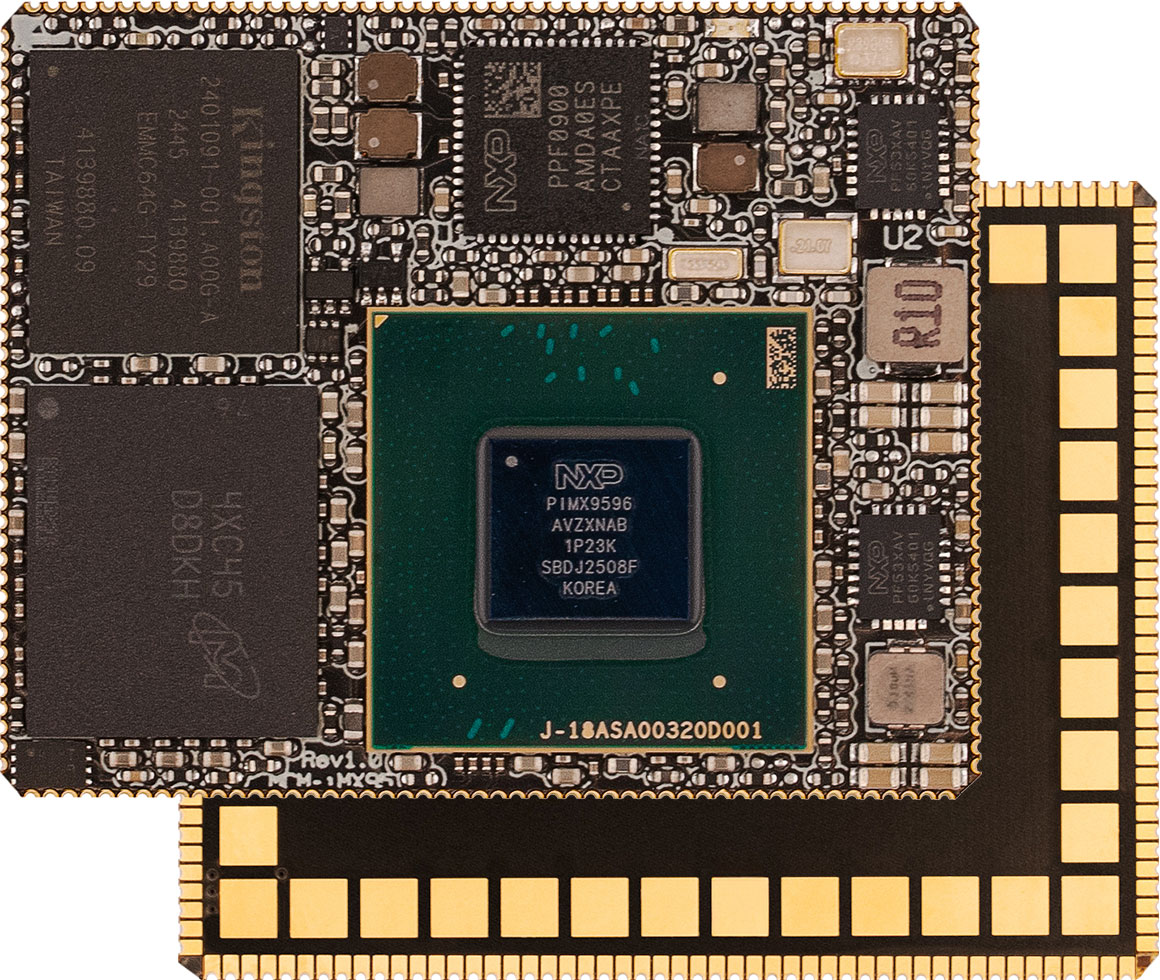

MCM-iMX95 SMD system-on-module
  • Solderable as a regular QFN component
  • Designed for SMT assembly and reflow soldering
  • Tiny footprint and weight - 34 x 42 x 3 mm, 8 gram
  • Industrial temperature range of -40C to 85C
  • Availability guaranteed until 2039
i.MX95 processor

Feature Highlights

  • ARM Cortex-A55 6x CPU cores, 2.0GHz
  • Up to 16GB LPDDR5 and 128GB eMMC
  • 2x RGMII, 10GbE, 2x PCIe, USB3.0
  • 2x LVDS, MIPI-DSI, 2x MIPI-CSI
  • 5x CAN, 8x UART, 8x SPI, 75x GPIO

View full spec

SW support

Yocto Project, Debian Linux and RTOS

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system, RTOS BSP and U-Boot
  • Support for Docker, MS Azure IoT and Node-RED
  • Support for OTA updates with Mender

Get a Head Start on Your Design

SW support
  • Full carrier-board design package - schematics, BOM, PCB layout
  • Direct technical support by Compulab design engineers
  • Proven building blocks for all key interfaces and peripherals
  • Free design review by Compulab engineers
  • Driver adaptation service for custom LCD panels

Carrier Board Design and Manufacturing

Compulab custom SBC service
  • Highly automated service creates a custom board in short time
  • Performed by Compulab tools and engineering team
  • No NRE fees
  • Order any quantity, from a single unit to mass production

Create Your Carrier Board

Why choose Compulab?

15-year Availability

Direct Engineer Support

Linux and Yocto Support

In-House Manufacturing

Industrial Temperature

Configure-to-Order

Learn more about Compulab advantages.

  • "Option" column specifies the configuration code required to have the particular feature
  • "+" means that the feature is always available

CPU Core
CPUNXP i.MX95, ARM Cortex-A55 up-to 6x cores, 1.8GHz
C1800HM
GPUARM Mali GPU
OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0
+
VPU4K video decode and encode
+
NPUeIQ® Neutron NPU
+
Real-Time
Co-processor		ARM Cortex-M7 + ARM Cortex-M33
+

Memory and Storage
RAM4GB – 16GB, LPDDR5
D
StorageeMMC flash, 16GB - 128GB
N

Display, Camera and Audio
DisplayLVDS, 2x 4-lane or 1x 8-lane , up to 1080p60
+
MIPI-DSI, 4 data lanes, up to 4kp30 or 3840x1440p60
+
TouchscreenCapacitive touch-screen support through SPI and I2C interfaces
+
Camera2x MIPI-CSI, 4 data lanes
+
Digital AudioUp-to 5x I2S / SAI
+
S/PDIF input/output
+

Network
Gbit Ethernet2x Gigabit RGMII
+
10 Gbit Ethernet10 GbE MAC
+

I/O
PCI Express2x PCIe Gen 3 1x lane
+
USB1x USB3.0 + 1x USB2.0
+
UARTUp to 8x UART
+
CAN busUp-to 5x CAN
+
SD/SDIOUp to 2x SD/SDIO
+
SPIUp to 8x SPI
+
I2CUp to 7x I2C
+
PWMUp to 4x general purpose PWM signals
+
ADCUp-to 4x general-purpose ADC inputs
+
GPIOUp to 75x GPIO (multifunctional signals shared with other functions)
+

System Logic and Debug
RTCReal time clock, powered by external battery
+
JTAGJTAG debug interface
+

Electrical Specifications
Supply Voltage
3.45V to 5.0V
Digital I/O voltage3.3V

Mechanical Specifications
Dimensions34 x 42 x 3 mm
Weight8 gram
Package180-pin, 0.8mm pitch QFN

Environmental and Reliability
MTTF> 200,000 hours
Operation temperature (case)Commercial: 0° to 70° C
Extended: -20° to 70° C
Industrial: -40° to 85° C
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz

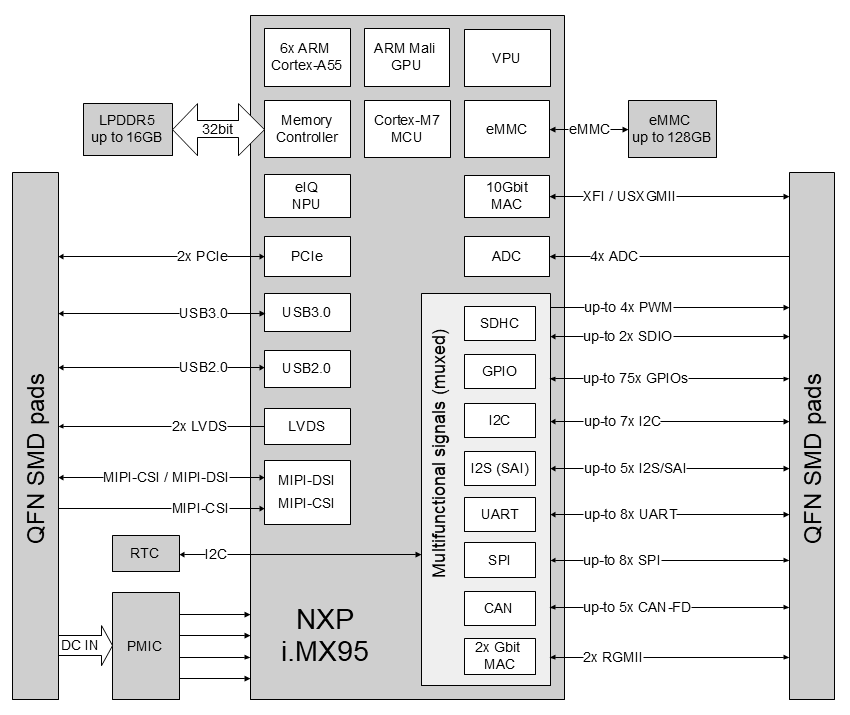

MCM-iMX95 NXP i.MX 95 SMD SOM System-on-Module block diagram

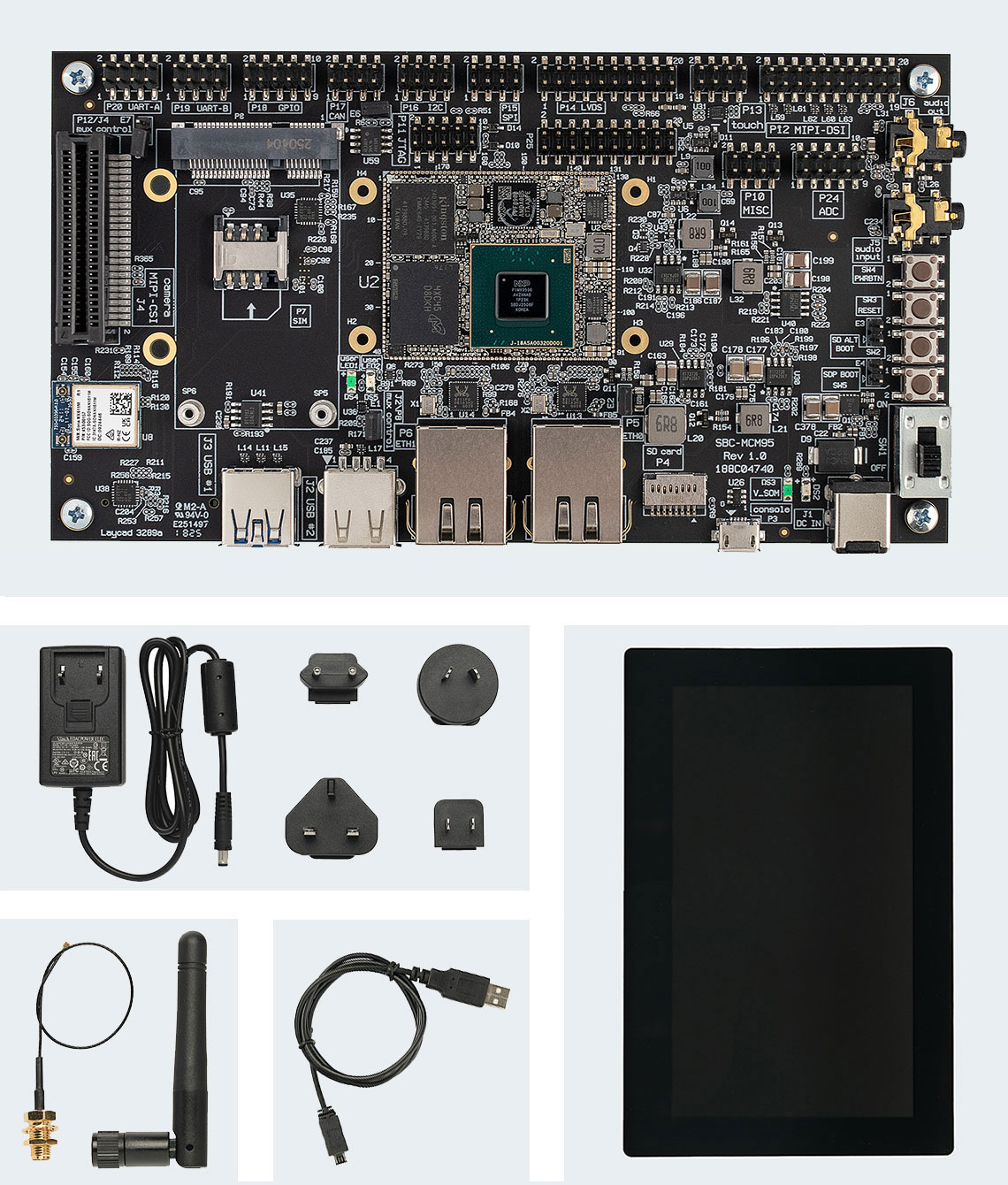

MCM-iMX95 Evaluation Kit

from: $345

Hardware

  • MCM-iMX95-C1800HM-D8-N64 SOM assembled on
       SB-MCMIMX95 carrier-board
  • Optional: 7" LVDS LCD with touch panel
  • Optional: Quectel EG25G LTE cellular modem
  • WiFi antenna and cable
  • Cables and adapters
  • 12V power supply

Technical Support

  • Technical support for 12 months.
  • Schematics review of the customer's carrier board design.
  • LCD panel compatibility verification and driver adaptation service.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Ordering Info

Orderable P/N template: EVAL-MCM-iMX95-[L7]-[JEG25G]

FeatureOptionsP/N code
LCD panelnone
7″ LVDS LCD panel		-
L7
Cellular modemnone
LTE CAT4, Quectel EG25G, global bands		-
JEG25G

Compulab part number specifies all options available for a particular product.

Ordering P/N template: MCM-iMX95-Cx-Dx-Nx-[Tx]

Product Configuration Options

FeatureOptionsP/N code
CPUi.MX9596, six-cores, 1.8GHzC1800HM
DRAM size4GB
8GB
16GB		D4
D8
D16
eMMC storage
16GB
32GB
64GB
128GB		N16
N32
N64
N128
Temperature rangeCommercial
Industrial Certified
Extended Tested
Industrial Tested		-
TIC
TET
TIT
Software PreloadingNo
Yes 		-
X
