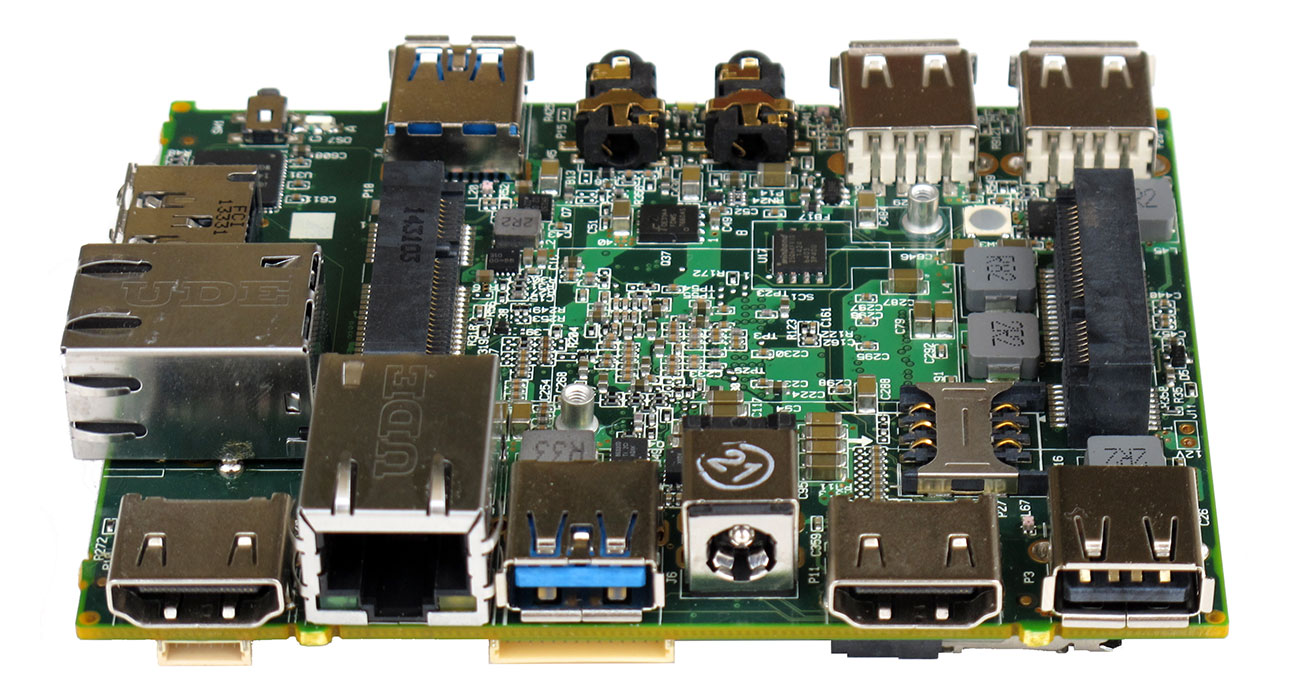

SBC-FLT - AMD A/E-Series Single Board Computer

  • Optimized for industrial embedded applications
  • Wide range of high-speed interfaces
  • Tiny form-factor and low power consumption

A-Series processor

AMD A/E-Series processor

  • Quad-core x86 CPU, 1.2GHz
  • AMD Radeon Graphics
  • Dual-head 1080p display
  • SBC Highlights

    Feature Highlights

  • Up to 8GB DDR3 and mSATA SSD
  • 2x HDMI 1.4a at up to 1920 x 1200
  • 2x 1000Mbps Ethernet, WiFi 802.11ac, BT 4.0
  • mini-PCIe, 2x USB3, 4x USB2, RS232
  • View full spec

    Why choose CompuLab?

    10-year Longevity

    Direct Engineer Support

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    • Option" column specifies the configuration code required to have the particular feature.
    • "+" means that the feature is always available.

    System and Graphics

    Feature
    Specifications
    CPU and GPUAMD E1 Micro-6200T 64-bit dual-core 1GHz, 3.95W TDP
    AMD Radeon R2 Graphics
    AMD A4 Micro-6400T 64-bit dual core 1 GHz 4.5W TDP
    AMD Radeon R3 Graphics
    AMD A10 Micro-6700T 64-bit quad core 1.2 GHz 4.5W TDP
    AMD Radeon R6 Graphics
    RAMUp to 8GB DDR3L-1333 (SO-DIMM socket)
    StoragemSATA socket (mini-PCIe form-factor)
    eSATAp port, 6Gbps

    I/O

    Feature
    Specifications
    DisplayTwo configurable display interfaces support dual-head operation
    2x HDMI 1.4a, 1920 x 1200 @60Hz
    AudioAnalog stereo line-out and line-in
    Realtek ALC886 codec
    S/PDIF output and input
    Ethernet2x 1000 BaseT Ethernet port, RJ-45 connector
    Intel I211 controller
    WirelessWLAN 802.11ac
    2.4/5GHz dual-band Intel 7260HMW
    Bluetooth 4.0
    USB2x USB3.0
    4x USB2.0
    SerialRS-232 port, ultra-mini serial connector
    SDMicro-SD socket, support for SDHC
    ExpansionFull-size mSATA socket
    Half-size/full-size mini-PCIe socket
    Micro SIM socket
    SecurityTMP - Trusted Platform Module
    System functionsAuto-on
    Wake-on-LAN
    Wake-on-Timer
    PXE boot
    Remote power button

    Electrical, Mechanical and Environmental Specifications

    Supply VoltageUnregulated 10V - 15V
    Power Consumption4.5 – 10.5 W, depending on configuration and system load
    Dimensions100 x 80 x 20 mm
    Weight180 gram
    MTBF> 100,000 hours
    Operation temperature (case)Commercial: 0° to 70°C
    Extended: -20° to 70° C
    Industrial: -40° to 70°C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz

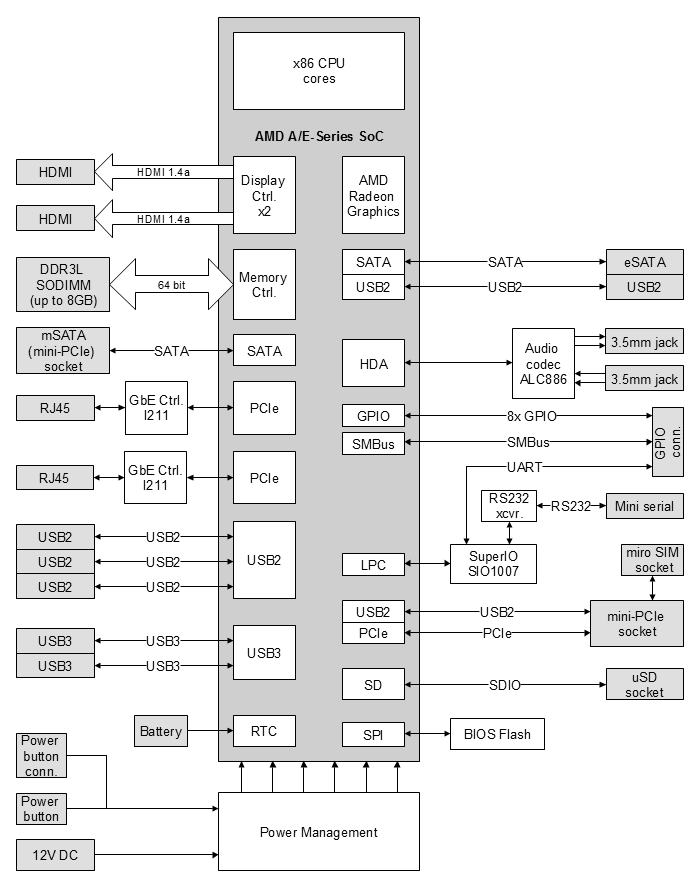

    SBC-FLT Single Board Computer block diagram
