SBC-QS600 - Snapdragon 600 Single Board Computer

  • High performance ARM SBC in a tiny footprint
  • Best-in-class graphics and multimedia
  • Wide range of high-speed interfaces

Qualcomm Snapdragon 600 processor

Qualcomm® Snapdragon™ 600 processor

  • Quad-core Krait™ 300 CPU, 1.7GHz
  • Integrated Adreno™ 320 GPU and 1080p VPU
  • Qualcomm® Hexagon™ DSP
  • SBC Highlights

    Feature Highlights

  • Up to 2GB DDR3, 32GB eMMC and 128GB mSATA SSD
  • HDMI and LVDS, up to 2048 x 1536
  • GbE, SATA, 5x USB2, 2x UART and 8x GPIO
  • WiFi 802.11a/b/g/n and Bluetooth 4.0
  • View full spec

    SW support

    Full Linux and Android support

  • Desktop-grade Ubuntu Linux
  • Android 4.4.3 Kit Kat
  • Supported in Linaro builds for Qualcomm Snapdragon
  • Why choose CompuLab?

    10-year Longevity

    Direct Engineer Support

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    * Qualcomm, Snapdragon, Adreno and Hexagon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Krait is a trademark of Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used with permission.

    • The "SB option" column specifies the SB-QS600 carrier board P/N code required for a particular feature. The "CM option" column specifies the CM-QS600 P/N code required for a particular feature. SBC-QS600 feature-set is a combination of features provided by the attached CM-QS600 and the features implemented on the SB-QS600. For a particular feature to be present, both the CM and SB options of that feature must be implemented.
    • "+" means that the feature is always available, regardless of P/N code.

    System and I/O

    FeatureSpecificationSB OptionCM Option
    CPU
    RAM
    Graphics
    Storage
    Please refer to CM-QS600 specifications
    DisplayHDMI 1.4a, up to 1920x1080 at 60Hz, HDMI connector
    +
    +
    LVDS, up to 2048x1536, FPC connector
    EVK
    +
    EthernetGigabit Ethernet interface implemented with the AR8151 controller
    RJ-45 connector, activity LEDs
    +
    E
    WiFi and
    Bluetooth
    Dual-band 2x2 802.11a/b/g/n WiFi interface
    Bluetooth 4.0 (low energy) (also compliant with Bluetooth 2.1 + EDR)
    Implemented with Atheros QCA6234 on-board CM-QS600. Two on-board connectors for external antennas
    +
    WB
    CellularCellular communication module interface. Mini-PCie socket
    uSIM interface via on-board SIM card holder
    +
    +
    USBUSB2.0 OTG port, micro-USB connector
    4 USB2.0 host ports, type-A connectors
    +
    +
    SATASATA interface, mini-PCIe connector
    +
    +
    Serial Ports1 UART debug port via UART-to-USB bridge
    +
    +
    Sound I/OAnalog audio implemented with the CM-QS600 audio codec
    Stereo output, line-in, 3.5mm jacks
    +
    A
    SDMicro-SD socket
    +
    +
    GPIOUp to 8 GPIOs, 100-mil header
    EVK
    +
    RTCReal time clock operated from coin-cell lithium battery
    +
    +

    Electrical, Mechanical and Environmental Specifications

    FeatureSpecifications
    Supply VoltageUnregulated 8V to 15V
    High efficiency switched power supply
    Power ConsumptionTBD
    Dimensions81mm x 81mm x 24mm
    Operation temp (case)Commercial:0° to 70° C
    Extended:-20° to 70° C
    Industrial:-40° to 85° C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz
    MTBF> 100,000 hours

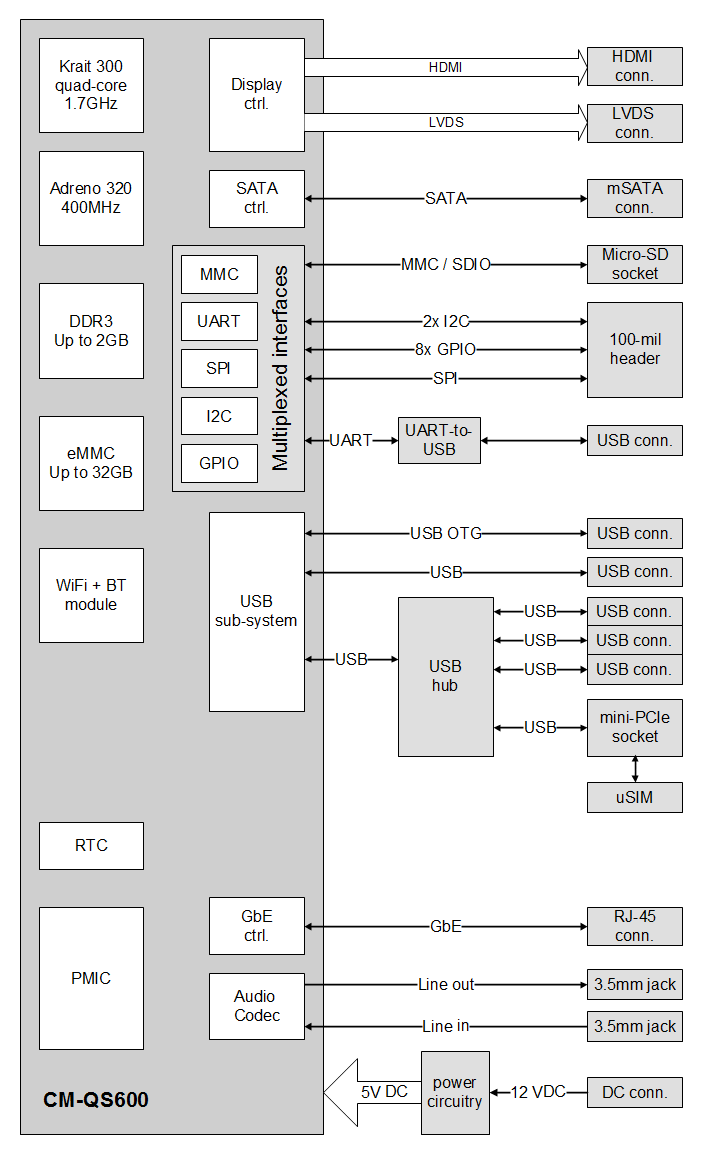

    SBC-QS600 block diagram

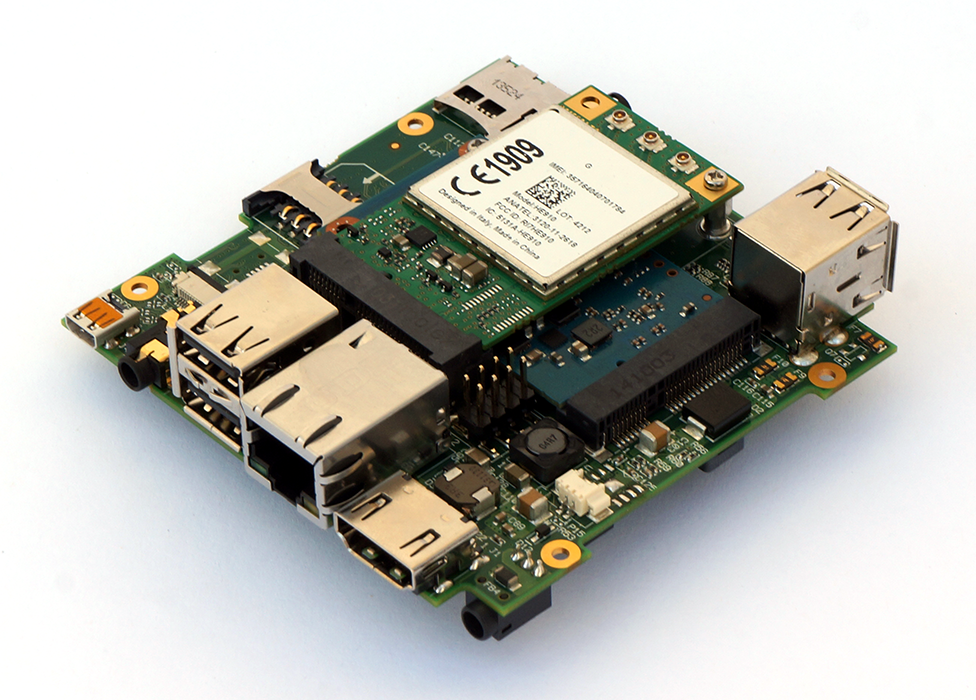

    CM-QS600 and SBC-QS600 evaluation kit with 3G modem

    Package contents

    Technical Support

    • Technical support for 12 months.
    • LCD panel compatibility verification and driver adaptation service.
    • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

    Hardware

    • CM-QS600-C1700-D2-N4-E-A-WB-H
    • SB-QS600-EVK
    • Telit HE910-D 3G cellular modem (USB module in mini-PCIe form-factor)
    • HDMI to DVI adapter
    • USB cables
    • Cellular antenna and cable
    • WiFi antenna and cable
    • 12V power supply

    Product status: Active

    The CompuLab part number specifies all options available for a particular product.
    Note: The SB-QS600 base-board must contain a CM-QS600 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-QS600 only.
    P/N template: SB-QS600-[VI]-[EVK]-[Tx]

    Minimal Configuration

    Minimal configuration P/N: SB-QS600
    1K-units price
    $39

    Optional Features

    FeatureOptionsP/N codeAdd ($)
    Evaluation HWNo
    Yes
    -
    EVK
    -
    5
    Temperature rangeCommercial
    Extended
    Industrial
    -
    TE
    TI
    -
    10
    50
    Cables, connectors and accessoriesclick here
    • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

    Small Quantity Orders

    Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

    QTYFactor
    1K1.0
    5001.2
    1001.5
    102.0
    13.0
