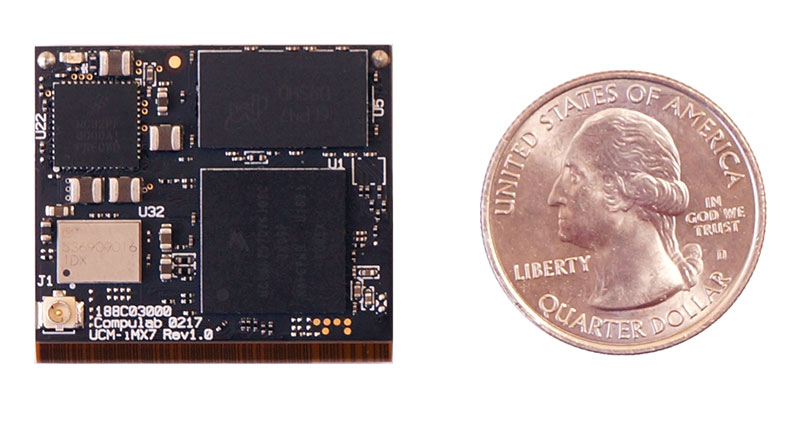

UCM-iMX7 - NXP i.MX7 System-on-Module

ARM Cortex-A7 SoM starting from $39

  • Ultra miniature size and low power consumption
  • Ideal for space constrained and portable systems
  • Wide range of high-speed interfaces

UCM-iMX7 Highlights

Fully Featured SoM in Ultra Miniature Form-Factor

  • Tiny size and weight - 30 x 27 x 8 mm, 6 gram
  • NXP i.MX7 CPU - dual core ARM Cortex-A7, 1GHz
  • Up to 2GB DDR3 and 64GB eMMC
  • Gbit Ethernet, WiFi 802.11b/g/n, BT 4.1
  • PCIe, 5x USB2, 7x UART, 112x GPIO
  • MIPI-DSI, Parallel RGB, up to 1920 x 1080
  • View full spec

    UCM-iMX7 applications

    Optimal solution for Mobile AI and Wearable Computing

  • Autonomous drones with artificial vision
  • VR, augmented reality and smart glasses
  • Wearable health monitoring and medical devices
  • IoT AI cameras
  • SW support

    Mainline Linux and Yocto Project

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system and U-Boot
  • Mainline Linux kernel support
  • i.MX7 System-on-Module

    Also available as SODIMM System-on-Module - SOM-iMX7

  • i.MX7 SoM in popular SODIMM form-factor
  • Ideal for cost sensitive and scalable industrial products
  • Learn more

    Why choose CompuLab?

    10-year Longevity

    Direct Engineer Support

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    • "Option" column specifies the configuration code required to have the particular feature.
    • "+" means that the feature is always available

    CPU Core

    CPUNXP (Freescale) i.MX 7Solo ARM Cortex-A7, 800MHz
    NEON SIMD and VFPv4
    C800
    NXP (Freescale) i.MX 7Dual ARM Cortex-A7, 1GHz
    NEON SIMD and VFPv4
    C1000D
    Real-Time
    Co-processor
    ARM Cortex-M4, 200Mhz
    +

    Memory and Storage

    RAM256MB – 2GB, DDR3L-1066
    D
    StorageSLC NAND flash, 128MB - 1GB
    N
    eMMC flash, 4GB - 64GB

    Display and Camera

    DisplayParallel 24-bit display interface, up to 1920 x 1080 @60Hz
    +
    MIPI-DSI, 2 data lanes, up to 1400 x 1050 @60Hz
    +
    TouchscreenOn-board 4-wire resistive touch-screen controller
    I
    Capacitive touch-screen support through SPI and I2C interfaces
    +
    CameraParallel camera interface, up to 24-bit
    +
    MIPI-CSI, 2 data lanes
    +

    Network

    Gigabit
    Ethernet
    1x 10/100/1000Mbps Ethernet port (MAC+PHY)
    E
    MII/RMII/RGMII Interface Ethernet port (MAC only)
    not E
    WiFi802.11b/g/n WiFi interface Cypress (Broadcom) BCM4343W chipset
    WB
    BluetoothBluetooth 4.1 BLE
    WB

    Audio

    Analog AudioAudio codec with analog stereo output, stereo input and electret microphone support
    A
    Digital AudioI2S compliant digital audio interface
    +
    MQS audio interface
    +

    I/O

    PCI ExpressPCIe x1 Gen. 2.1
    C1000D
    USB1x USB2.0 OTG port
    +
    Additional 1x USB2.0 host ports
    C1000D
    Additional 3x USB2.0 host ports
    UH
    UARTUp to 7x UART ports, up to 4 Mbps
    +
    CAN busUp to 2x CAN bus, 3.3V levels
    +
    MMC/SD/SDIOUp to 2x MMC/SD/SDIO
    +
    SPIUp to 3x SPI
    +
    I2CUp to 3x I2C
    +
    PWMUp to 4x general purpose PWM signals
    +
    GPIOUp to 112x GPIO (multifunctional signals shared with other functions)
    +
    TimersUp to 6x Timer outputs
    +
    ADC4x general-purpose ADC channels
    not I

    System Logic

    RTCReal time clock, powered by external battery
    +

    Electrical Specifications

    Supply Voltage
    3.2V to 4.5V / Li-Ion battery
    Digital I/O voltage3.3V
    Active power consumption0.5 - 2.5 W, depending on configuration and system load

    Mechanical Specifications

    Dimensions30 x 27 x 8 mm
    Weight6 gram
    Connectors2 x 100 pin, 0.4mm pitch

    Environmental and Reliability

    MTTF> 200,000 hours
    Operation temperature (case)Commercial: 0° to 70° C
    Extended: -20° to 70° C
    Industrial: -40° to 85° C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz

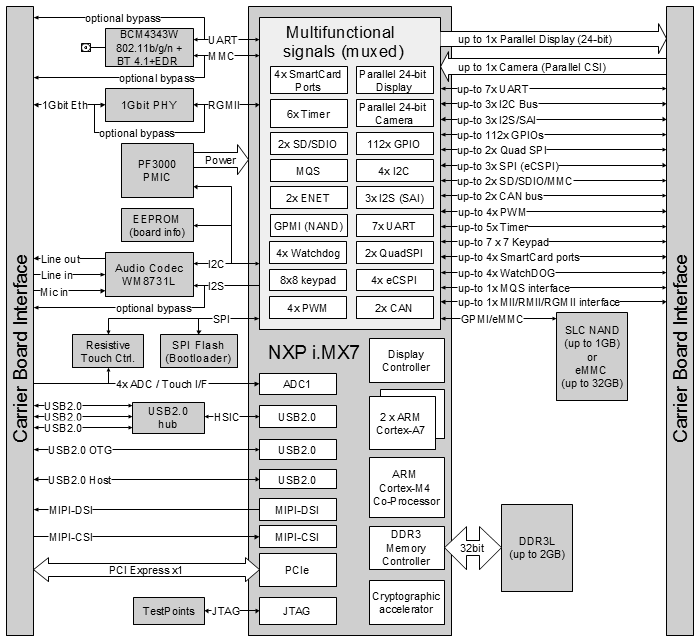

    UCM-iMX7 (NXP i.MX7) System-on-Module block diagram

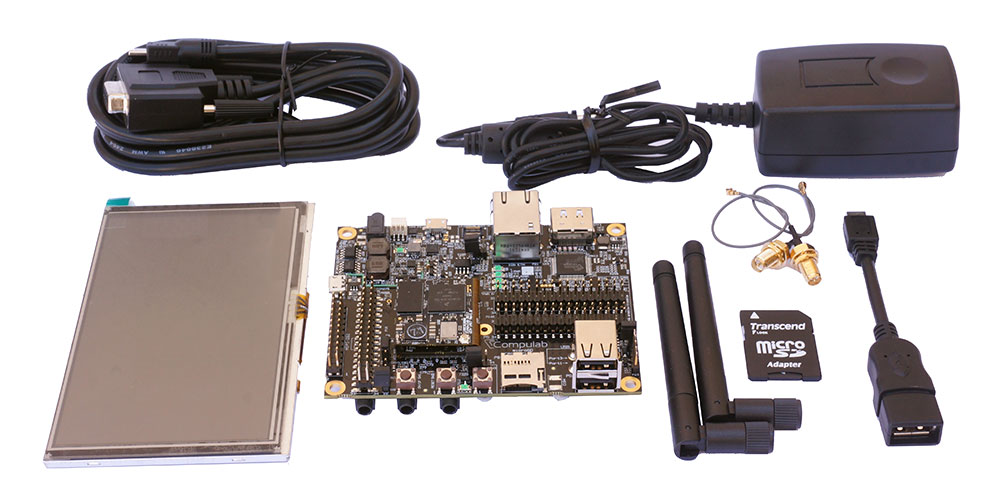

    UCM-iMX7 Evaluation Kit

    Package contents

    Technical Support

    • Technical support for 12 months.
    • Schematics review of the customer's carrier board design.
    • LCD panel compatibility verification and driver adaptation service.
    • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

    Hardware

    Kit Price: $475

    • UCM-iMX7-C1000D-D1G-N4G-E-A-I-UH-WB
    • SB-UCM carrier board
    • WiFi antenna and cable
    • Serial port cable
    • HDMI to DVI cable
    • USB cable and adapter
    • LCD panel
    • Adapters & cables for generic LCD panel interface
    • 12V power supply

    Documents and Guides

    Product status: Introduction

    CompuLab part number specifies all options available for a particular product.
    P/N template: UCM-iMX7-Cx-Dx-Nx-[E]-[A]-[I]-[UH]-[WB]-[Tx]

    Minimal Configuration

    Minimal configuration P/N: UCM-iMX7-C800-D256-N128
    1K-unit price:
    $39

    Optional Features

    FeatureOptionsP/N codeAdd ($)
    CPU typei.MX7 Solo, 800MHz
    i.MX7 Dual, 1GHz
    C800
    C1000D
    -
    2
    DRAM size256MB
    512MB
    1GB
    2GB
    D256
    D512
    D1G
    D2G
    -
    2
    7
    30
    Storage128MB NAND (SLC)
    1GB NAND (SLC)
    4GB eMMC (MLC)
    16GB eMMC (MLC)
    32GB eMMC (MLC)
    N128
    N1G
    N4G
    N16G
    N32G
    -
    3
    3
    7
    23
    Ethernet portNo
    Yes
    -
    E
    -
    2
    Analog audioNo
    Yes
    -
    A
    -
    2
    TouchscreenNo
    Yes
    -
    I
    -
    1
    USB hubNo
    Yes
    -
    UH
    -
    4
    WiFi & Bluetoothnone
    WiFi 802.11 b/g/n and Bluetooth 4.1
    -
    WB
    -
    9
    Temperature rangeCommercial
    Industrial Certified
    Extended Tested
    Industrial Tested
    -
    TIC
    TET
    TIT
    -
    10
    20
    75
    Software PreloadingNo
    Yes
    -
    X
    -
    $1/100MB
    • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

    Small Quantity Orders

    Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

    QTY Factor
    10K0.95
    1K 1.0
    5001.2
    1001.5
    102.0
    12.5
