SBC-T43 - TI AM437x Single Board Computer

  • Optimized for industrial embedded applications
  • Wide range of high-speed interfaces
  • Configurable feature-set

AM437x processor

Texas Instruments Sitara AM437x processor family

  • ARM Cortex-A9 CPU, 1GHz
  • PowerVR SGX530 GPU
  • Integrated Real-Time Unit (PRU-ICSS)
  • SBC Highlights

    Feature Highlights

  • Up to 1GB DDR3 and 32GB eMMC
  • LVDS, DVI, LCD at up to 1400 x 1050
  • 2x 1000Mbps Ethernet, WiFi ac/b/g/n, BT 4.0
  • 3x USB, UART, CAN, 24x GPIO
  • View full spec

    SW support

    Mainline Linux and Yocto Project

  • Full Board Support Package and ready-to-run images
  • Linux kernel, Yocto Project file-system and U-Boot
  • Mainline Linux kernel support
  • Why choose CompuLab?

    10-years Longevity

    Direct Support by Engineers

    Mainline Linux and Yocto

    In-House Manufacturing

    Industrial Temperature

    Configure-to-Order

    Learn more about CompuLab advantages.

    • The "SB option" column specifies the SB-SOM-T43 carrier board P/N code required for a particular feature. The "CM option" column specifies the CM-T43 P/N code required for a particular feature. SBC-T43 feature-set is a combination of features provided by the attached CM-T43 and the features implemented on the SB-SOM-T43. For a particular feature to be present, both the CM and SB options of that feature must be implemented.
    • "+" means that the feature is always available, regardless of P/N code.
    FeatureSpecificationSB OptionCM Option

    System Core

    CPU
    Graphics
    RAM
    Storage
    Please refer to CM-T43 specifications

    Display

    LCD panelParallel RGB interface, up to 1400x1050, FPC connector
    Resistive touch-screen interface, FPC connector
    Fully supports Startec KD050C 5" 480x800 TFT LCD panel
    +
    +
    DVIDVI, up to 1400x1050, HDMI connector
    +
    +
    LVDSLVDS interface, up to 1400x1050, 100-mil header
    +
    +

    Network

    EthernetPrimary 1000/100/10Mbps Ethernet port, RJ45 connector
    +
    E1
    Secondary 1000/100/10Mbps Ethernet port, RJ45 connector
    +
    E2
    WiFiDual-band, dual-antenna 2x2 MIMO 802.11ac/a/b/g/n WiFi interface
    Implemented with CM-T43 on-board wireless module
    +
    WB
    BluetoothBluetooth 4.0 (low energy)
    Implemented with CM-T43 on-board wireless module
    +
    WB

    Audio

    Analog AudioAnalog stereo output, line-in, microphone; 3.5mm jacks
    Implemented with the CM-T43 audio codec
    +
    A

    I/O

    USB1x USB2.0 OTG high-speed port, 480 Mbps, micro-USB connector
    +
    +
    2x USB2.0 host high-speed ports, 480 Mbps, type-A connectors
    +
    +
    MMC / SDIOMMC / SD / SDIO interface. Standard full-size SD socket.
    +
    +
    Serial1x serial debug port via UART-to-USB bridge, micro-USB connector
    +
    +
    1x serial debug port via RS232 transceiver, ultra-mini serial connector
    * mutually exclusive with serial debug port via USB
    +
    +
    Up-to 3x UART, 3.3V levels, 100-mil header
    +
    +
    CAN bus1x CAN bus interface with isolator and driver, 100-mil header
    +
    +
    SPIUp-to 2x SPI interface, 100-mil header
    +
    +
    I2CUp-to 2x I2C interface, 100-mil header
    +
    +
    ADC16x ADC inputs, 100-mil header
    +
    +
    GPIOUp-to 24x GPIO, 100-mil header
    +
    +

    System

    RTCReal time clock operated from on-board coin-cell battery
    +
    +

    Electrical Specifications

    Supply Voltage
    Unregulated 8V to 15V
    Digital I/O voltage3.3V

    Mechanical Specifications

    Dimensions150mm x 130mm x 22mm
    Weight145 gram

    Environmental and Reliability

    MTTF> 100,000 hours
    Operation temperature (case)Commercial: 0° to 70° C
    Extended: -20° to 70° C
    Industrial: -40° to 85° C. Click for availability note
    Storage temperature-40° to 85° C
    Relative humidity10% to 90% (operation)
    05% to 95% (storage)
    Shock50G / 20 ms
    Vibration20G / 0 - 600 Hz

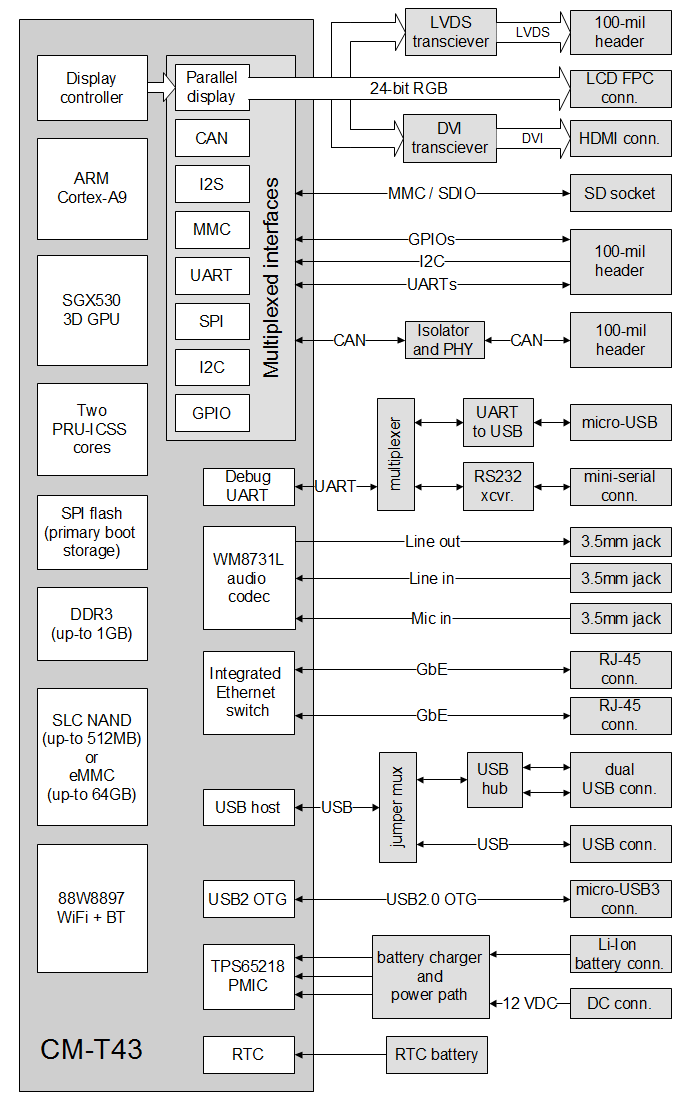

    SBC-T43 block diagram

    CM-T43 and SBC-T43 Evaluation Kit

    Package contents

    Technical Support

    • Technical support for 12 months.
    • Schematics review of the customer's carrier board design.
    • LCD panel compatibility verification and driver adaptation service.
    • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

    Hardware

    Kit Price: $375

    • CM-T43-C1000M-D1G-N4G-E2-A-WB
    • SB-SOM-T43 carrier board
    • WiFi antenna and cable
    • Serial port cable
    • HDMI to DVI cable
    • USB cable and adapter
    • LCD panel
    • Adapters & cables for generic LCD panel interface
    • 12V power supply

    Documents and Guides

    Product status: Active

    The CompuLab part number specifies all options available for a particular product.
    Note: The SB-SOM-T43 carrier-board must contain a CM-T43 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-SOM-T43 only.
    P/N template: SB-SOM-T43-[Tx]

    Minimal Configuration

    Minimal configuration P/N: SB-SOM-T43
    1K-units price
    $81

    Optional Features

    FeatureOptionsP/N codeAdd ($)
    Temperature rangeCommercial
    Extended
    Industrial
    -
    TE
    TI
    -
    10
    50
    Cables, connectors and accessoriesclick here
