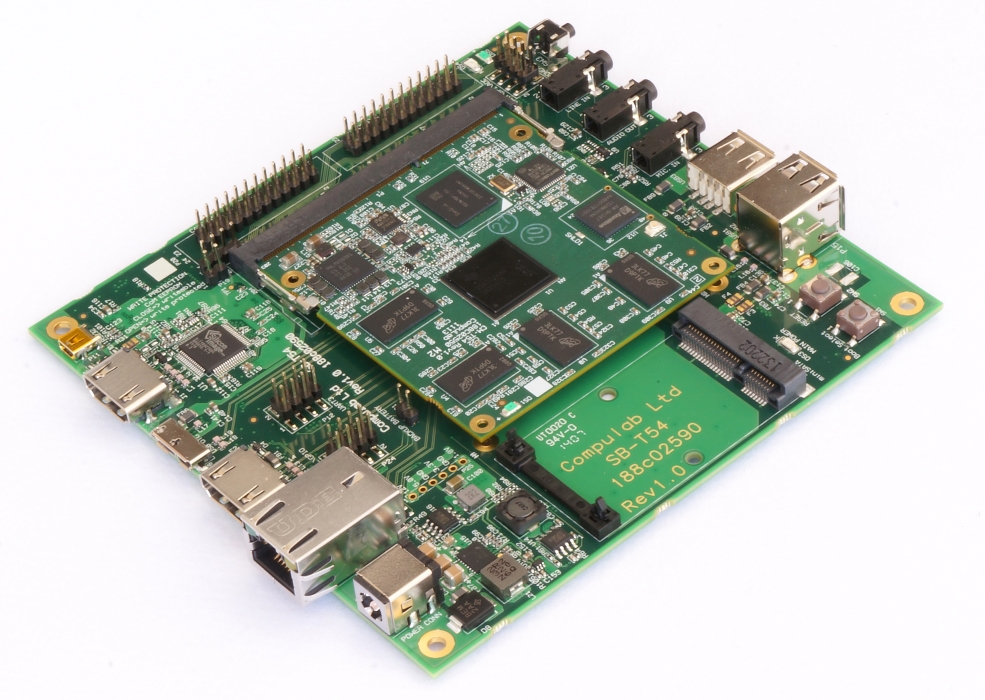

SBC-T54 – TI OMAP5432 Single Board Computer

  • High-performance ARM Cortex-A15 single board computer
  • Cutting-edge video and graphics enable high-end multimedia applications
  • Wide range of high-speed interfaces provides extensive connectivity

Product Highlights

  • Single board computer implemented with CM-T54 computer-on-module and SB-T54 carrier board
  • Texas Instruments OMAP5432 dual-core Cortex-A15 CPU, 1.5GHz
  • Up to 4GB DDR3 and up to 32GB on-board eMMC
  • Video Processing Unit, 1080p decoding and encoding
  • Integrated PowerVR SGX544 GPU with OpenGL-ES and OpenCL EP support
  • HDMI, DVI, LVDS, parallel RGB
  • Ethernet, SATA, USB3, USB2 x3, WiFi, Bluetooth, RS232
  • Linux and Android Jelly Bean
  • 10V - 17V supply

Description

SBC-T54 is a single board computer based on the Texas Instruments OMAP5432 CPU. It is implemented with a CM-T54 computer-on-module providing most of the functions, and SB-T54 carrier board providing connectors and several additional functions. The rich feature set of SBC-T54 is customizable according to the price / performance needs of the target application. SBC-T54 contains expansion connectors which accommodate a wide range of standard peripheral devices. Wide input range switched power supply is compatible with requirements for telecom and automotive applications. SBC-T54 is provided with full ready-to-run Linux and Android SW packages and comprehensive documentation.

  • The "SB option" column specifies the SB-T54 carrier board P/N code required for a particular feature. The "CM option" column specifies the CM-T54 P/N code required for a particular feature. SBC-T54 feature-set is a combination of features provided by the attached CM-T54 and the features implemented on the SB-T54. For a particular feature to be present, both the CM and SB options of that feature must be implemented.
  • "+" means that the feature is always available, regardless of P/N code.

System and I/O

FeatureSpecificationSB OptionCM Option
CPU
RAM
Graphics
Storage
Please refer to CM-T54 specifications
Display• HDMI 1.4, up to 1920x1080 at 60Hz, HDMI connector
• DVI, up to 1920x1080, HDMI connector
• Parallel RGB, up to 1920x1080, FPC connector
+
+
• LVDS, up to 1920x1080, 100-mil header
+
L
Ethernet100Base-T Ethernet interface implemented with the Microchip LAN9730 controller. RJ-45 connector, activity LEDs.
+
E
WiFi and
Bluetooth
WiFi 802.11b/g/n implemented with Marvell 88W8787 chipset
Bluetooth 3.0 + High Speed (HS) (also compliant with Bluetooth 2.1 + EDR)
On-board connector for external antenna
Implemented with the CM-T54 on-board wireless module
+
WB
USB1 OTG USB3.0 port, micro-USB connector
+
U1
1 OTG USB3.0 port, micro-USB connector
3 host USB2.0 high-speed ports, 480 Mbps, type-A connectors
+
U4
SATASATA interface, mini-PCIe connector
+
+
Serial Ports1 RS-232 port, rx/tx only, RS-232 levels, up to 460 Kbps, RJ-11 connector
+
+
Sound I/OAnalog audio implemented with the CM-T54 audio codec
Stereo output, line-in, microphone input; 3.5mm jacks
+
A
SDSD socket
+
+
GPIOUp to 24 GPIOs, 100-mil header
+
+
Video Input1 parallel camera port (up to 20 bit and up to 240 MHz peak), FPC connector
+
+
MIPI CSI-2 interface, 100-mil connector
+
+
Battery
Management
Charging and supervision support for Lithium-ion polymer batteries
+
+
RTCReal time clock operated from on-board rechargeable lithium battery.
+
+

Electrical, Mechanical and Environmental Specifications

FeatureSpecifications
Supply VoltageUnregulated 8V to 15V.
High efficiency switched power supply.
Power ConsumptionTBD
Dimensions134mm x 127mm x 21mm
Operation temp (case)Commercial:0° to 70° C
Extended:-20° to 70° C
Industrial:-40° to 85° C. Click for availability note
Storage temperature-40° to 85° C
Relative humidity10% to 90% (operation)
05% to 95% (storage)
Shock50G / 20 ms
Vibration20G / 0 - 600 Hz
MTBF> 100,000 hours
SBC-T54 block diagram

Hardware Documentation

Hardware Design Resources

Software Resources

Linux

U-Boot

Archive

For previous versions of the CM-T54 software packages, please refer to the CM-T54 software archive.

CM-T54 & SB-T54 evaluation kit

Package contents

Technical Support

  • Technical support for 12 months.
  • LCD panel compatibility verification and driver adaptation service.
  • 45-day trial period. Eval Kit will be accepted for refund if the user finds the product not suitable for his needs.

Hardware

  • CM-T54-C1500-D2-N8-E-A-I-L-U4-WB-H
  • SB-T54
  • LCD panel
  • HDMI to DVI adapter
  • Serial port cable
  • WiFi antenna and cable
  • 12V power supply

Product status: Active

The CompuLab part number specifies all options available for a particular product.
Note: The SB-T54 base-board must contain a CM-T54 module for the implementation of a self-contained SBC. Options specified on this page refer to the SB-T54 only.
P/N template: SB-T54-[Tx]

Minimal Configuration

Minimal configuration P/N: SB-T54
1K-units price
$51

Optional Features

FeatureOptionsP/N codeAdd ($)
Temperature rangeCommercial
Extended
Industrial
-
TE
TI
-
10
50
Cables, connectors and accessoriesclick here
  • Prices are specified in U.S. Dollars. Prices are periodically updated according to variations in component costs. Prices are subject to change without advance notice.

Small Quantity Orders

Pricing is specified for 1000-unit orders. In order to calculate the price for another quantity, multiply the unit price (with selected options) by the factor listed in the table below:

QTYFactor
1K1.0
5001.2
1001.5
102.0
13.0
